Introducing our Full Servo Sanitary Napkin Machine: A breakthrough in hygiene innovation, designed to deliver exceptional efficiency and precision. Tailored with advanced technology to meet the demands of modern production. Product Description
| CSG-SN1500EP Full Servo Sanitary Napkin Machine |
|
|
|
|

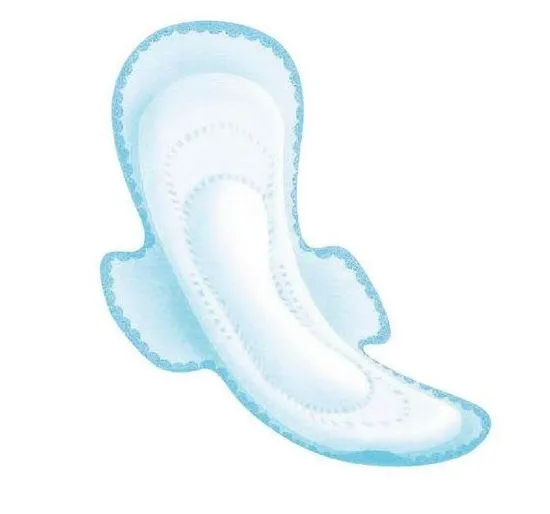

| Product Stucture |
| 1 | Fast-easy packing sanitary napkin |
| 2 | Straight packing sanitary napkin |
| 3 | Individual packing sanitary napkin |
| Main Technical Parameters |
| 1 | Supply: 3 phase,380V,50Hz |
| 2 | Power:180-330KW(Excluding hot melt applicator and Compressor) |
| 3 | Production speed:600-1200pcs/min |
| 4 | Qualification:≥97% |
| 5 | Outside dimension(m):32 x 8.5 x 3 (L×W×H)( for reference) |
| Main Function and Features |
| (I)Mechanical part |
| 1 | Pulp SAP mixing product and laminating core product are compatible |
| 2 | High-density ultra-thin fluff core forming system,good absorbability |
| 3 | Core punching on-line and top sheet printing rule position function |
| 4 | With web guiding system |
| 5 | Machine with count function and directly connect with packing machine (option) |
| 6 | Packing machine(option) |
| 7 | Dust collection filter system (option) |
| 8 | Straight packing with fixtape separating function(option) |
| (II)Electric part |
| 1 | Full servo motor drive and PLC control |
| 2 | One button for size change, quick and less waste |
| 3 | High-precision tension control system,active un-winding and auto-splicing system |
| 4 | i-MAS Intelligent equipment mangement and analysis system |
| 5 | Material auto-splicing end joint limit at 3m, and decrease material wastage |
| 6 | Material automatic inspect,broken and lost alarm system |
| 7 | Material picture ruled position application |
| 8 | Vision inspection system (option) |
| 9 | Elastic BTSR tension control system, single tension adjust(option) |
ZHEJIANG NEW YUHONG INTELLIGENT EQUIPMENT CO.,LTD
With nearly 30 years of excellence in designing and manufacturing disposable hygiene machines, including sanitary napkin machines, under pad machines, and adult & baby diaper machines, we deliver over 30 production lines annually. Our global footprint boasts thousands of machines distributed worldwide, with a distinguished reputation in China, Southeast Asia, the Middle East, and Europe.
