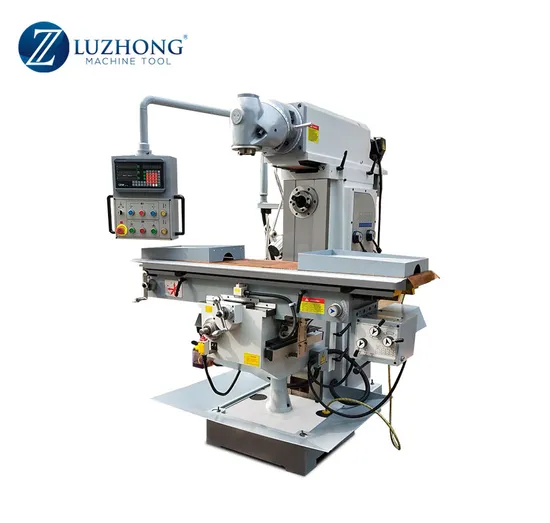

Rotary head metal conventional type X6436 high precision milling machine

Product Description

Rotary head metal conventional type X6436 high precision milling machine
Product Description

Product Parameters

SPECIFICATIONS	Units	X6436
Table size	mm	1500*360
Table travel	mm	1000/320/400
T slot(number-width*pitch)	-	3-18*80
Spindle taper	-	ISO40
Horizontal spindle taper	-	ISO40
Spindle speed range(steps)	rpm	48-1660 (12)
Horizontal spindle speed range(steps)	rpm	40-1300 (12)
Distance between spindle nose and table surface	mm	150-550
Distance between spindle axis and table surface	mm	0-400
Table feed range(steps)	mm	XY:22-555 (8) Z:electric
Swivel angle of milling head	o	360
Main motor power	kw	4( V)/4( H)
Feed motor power	kw	1.1
Machine weight	kg	2580
Overall dimension	mm	2550*2050*2050

Detailed Photos

Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
