Product Details
Product Description
Product Description
Brand: GE

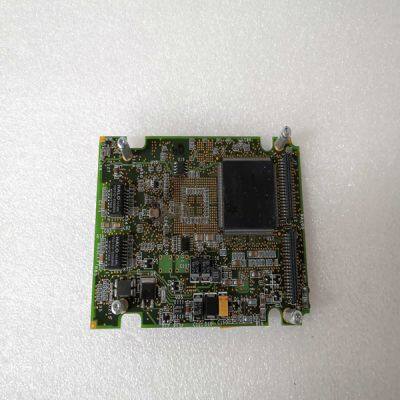

Type:IS210BPPBH2BMD
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
For compatibility with sourcing outputs, the DINP COM terminal is connected to the negative terminal of the power source (4.0 to 30 VDC). The input (DINP1-4) is connected to the sourcing logic output on the field device as shown in the diagram below.
General Purpose Outputs General Purpose Outputs J4-6,7 DOUT1 (FAULT) J4-8,9 DOUT2 ( RUN ) DOUT1 and DOUT2 are optically isolated outputs that provide information about the state of the drive. The outputs are Darlington phototransistors with a 33 V zener diode wired in parallel to clamp voltage transients.
DEFAULT OUTPUT FUNCTIONS The list below describes the factory defaults for each of the outputs. DOUT1 (FAULT) Output 1: This output provides the FAULT state of the drive. When the drive is powered and not faulted, the output transistor is turned ON. When the drive is faulted or not powered, the output transistor is turned OFF. DOUT2 (RUN) Output 2: This output provides the RUN state of the drive. When the drive is powered, not faulted and enabled, the output transistor is turned ON. When the drive is faulted, not enabled or not powered, the output transistor is turned OFF. This output indicates when the drive is capable of running the motor. 6.7.2.2. OUTPUTS DRIVING TYPICAL LOADS Both the collector and emitter of the phototransistor are on J4, providing the capability to drive either sinking or sourcing loads. Sinking Load Current Limiting Resistor 50 mA MAX External Power Supply 30 VDC MAX DC + - An optoisolator is being driven in this example. The current through the output needs to be limited to 50 mA or less, which is accomplished by selecting an appropriate current limiting resistor. The voltage of the external power source needs to be 30 VDC or less, and can be the same source used to provide power to the inputs. Sourcing Load Current Limiting Resistor 50 mA MAX External Power Supply 30 VDC MAX Relay Clamp Coil Diode DC + - In this example, a relay coil is being driven. The current through the coil needs to be limited to 50 mA or less, which is accomplished by selecting an appropriate value of current limiting resistor. Danaher Motion 2/2008 Wiring the Drive S200 Base/SynqNet Reference Manual M-SM-200-01 C 48 The voltage of the exter
>>
