| US$15,000.00 | 1 Piece (MOQ) |

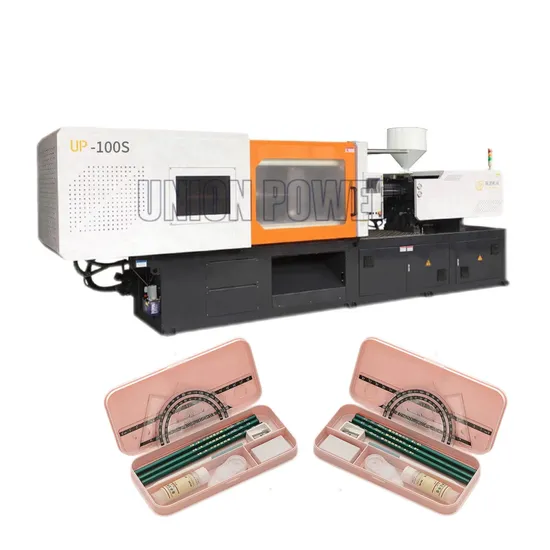

| Technical Parameters | Model UP-110T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 32 | 35 | 38 |
| Shot Volume (cm3) | 134 | 161 | 192 |
| Injection weight (g) | 121 | 145 | 170 |
| injection pressure (Mpa) | 191 | 150 | 132 |
| Screw speed (rmp) | 220 | ||
| Clamping Unit | |||
| Clamping force (KN) | 1000 | ||
| Open stroke (mm) | 285 | ||
| Max Mold height (mm) | 350 | ||
| Min Mold height (mm) | 100 | ||
| Space between tie bars(mm) | 350x310 | ||
| Ejector force (KN) | 28 | ||
| Ejector stroke (mm) | 70 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 9.8 | ||
| Heating power (KW) | 6.3 | ||
| Machine dimension (M) | 3.6x1.12x1.72 | ||
| Machine weight (T) | 2.7 | ||
| Oiltank cubage (L) | 135 | ||
