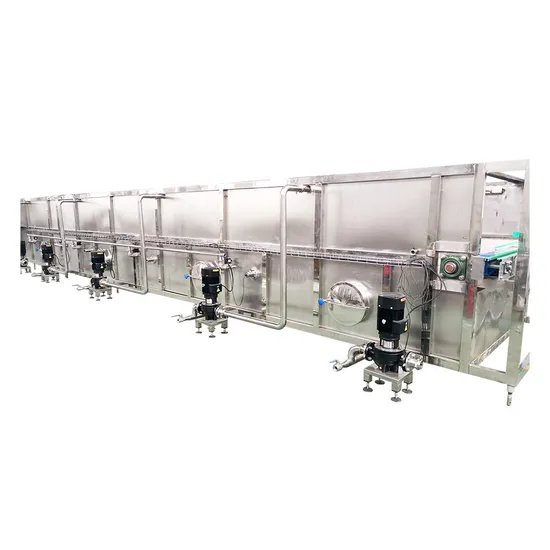

Spraying Water Bottle Cooling Tunnel Pasteurizer for Hot Filled Juice Glass Bottle

US$15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PL-1
Condition
New
Customized
Customized
Voltage
380V
Composition
Cooling Tunnel
Processing Material
Special Agricultural Products
Process
Frozen and Chilled
Type
Cooling Tunnel
Size
Customizer Making
Material
Stainless Steel
Speed Adjustable
Yes
Transport Package
Wooden Case
Specification
CE
Trademark
Mars
Origin
Zhangjiagang
HS Code
841989
Production Capacity
60 PCS/Year

Packaging & Delivery

Package Size
600.00cm * 150.00cm * 180.00cm
Package Gross Weight
2000.000kg

Product Description

Spraying Water Cooling Tunnel for Hot Filling Bottled Juice(PL-1) adopts a three section cooling water recycling cooling design. The first section uses water at 85-65 degrees. The second part is at 50-35 degrees, and the third part adopts aseptic water spray. The outlet bottle temperature is below 35-40 degrees.
Cooling Tunnel Features:
1)The chain plate apply anti-friction and high temperature resistance engineering plastic.
2) Apply advanced PLC controller to assure all action precision.
3)The conveyor is frequency controlled.
4)All spray tubes are made of stainless steel and spray evenly.
5)All spray nozzles are made of engineering plastic.
6)The catchment flume is made of stainless steel and equipped with a level alarm device.
7)The spray-cooling tunnel has a spray cooling recycling water pump.
