DIN Rail Energy Meter Class 0.5s High Accuracy Three Phase CT Meter

Product Description

Product Name: Din rail mount 1000V direct input EV charger DC Energy Meter

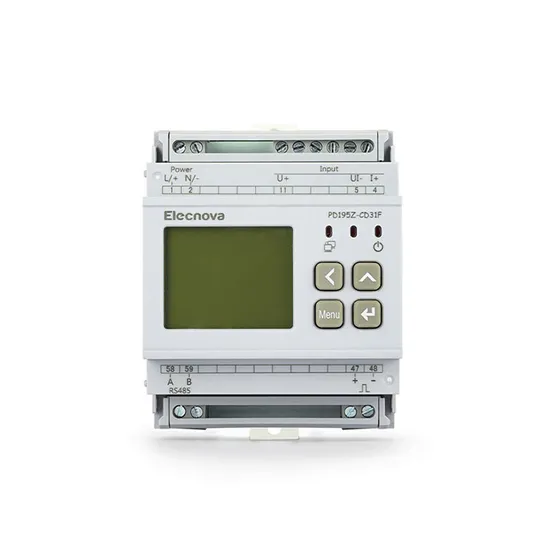

PD195Z-CD31F is a DC rail-mounted electric energy meter designed and developed by ELECNOVA for EV Charger. The product can measure 1000V DC voltage, and a variety of auxiliary power supplies can be selected to adapt to different application environments of customers. Through the RS485 communication interface, it can be easily integrated with various intelligent power distribution systems and energy management systems to share monitoring data.

Accuracy		U/I/P 0.5, Energy 1
Data refresh rate		1s
Measuring	Voltage	Input	DC 1000V
			50V~1200V
			0.20%
	Current	Input	DC 75mV
		Range	0.002In~1.2In
		Accuracy	0.20%
	Power	Accuracy	0.50%
Power supply	Working range		AC/DC 80~270V, DC24, DC12V
	Power Consumption		≤1W
Communication			RS485, Modbus-RTU
			Baud rate 1200~38400bps
Protection level			IP20
Working temperature			'-10~85ºC
Relative humidity			≤95%RH
Pollution class			2
Altitude			2000m

Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.


Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.


Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.


Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.


Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.

---
