Pneumatic Actuated Wafer V Port Stainless Steel CF8 CF8m Wcb Ball Valve

Product Description

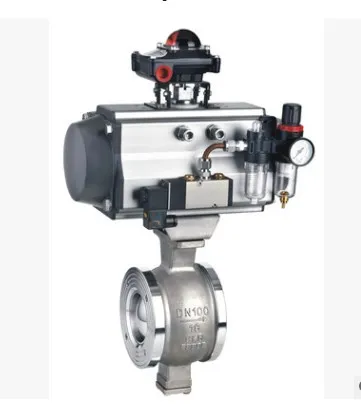

Pneumatic Actuated Wafer V Port Stainless Steel CF8 CF8M WCB Ball Valve Summary:
Q670F pneumatic ball valve is a pneumatic ball valve series of products. It is a new generation of ultra-thin flange distance ball valve developed by our company by introducing Italian technology and carrying out domestic design. The core channel is v-shaped. Pneumatic sandwich ball valve has the characteristics of compact structure, small volume and light weight.

Specification of Pneumatic Wafer V-type Ball Valve
Model	ZTVQ670F(P,H,V )
Nominal Diameter	DN25-500mm
Pressure	1.6;2.5;4.0;6.4MPa; 150Lb;300Lb;600Lb
Structure	V-type Cut Fixed Ball Valve
Design Standard	ANSI; JIS; GB; DIN
Body Material	WCB; CF8; CF8M; CF3; CF3M
Seat Material	PTFE; PPL; H.Y
Action Manner	Double acting; Single acting
Control Type	On-off Type; Adjust type
Accessories	Limit Switch; Solenoid Valve; Positioner; F.R.L

Technique Norm
Design Basis	GB Standard	ANSI Standard
Design Standard	GB/12237	ANSI B16.34
Connection Flange Size	GB/9113 JB/T79	ANSI B16.5
Test & Inspection	JB/T9092	API 598

The Drawing of Pneumatic Wafer V-type Ball Valve

Parts List
NO	Parts Name	Quality	Material
1	Body	1	WCB; CF8; CF8M; CF3; CF3M
2	Spool	1	CF8,CF8M
3	After steam	1	SUS316
4	Cylindrical pin	2	SUS316
5	Before steam	1	SUS316
6	Spline	1	SUS316
7	Flat key	1	SUS304
8	After gland	1	CF8,CF8M
9	O-ring	1	Viton
10	Adjust pad	1	PTFE
11	Self-lubricating bearings	1	Composite material
12	Self-lubricating bearings	1	Composite material
13	Packing	2	PTFE
14	Gland	1	CF8M
15	O-ring	1	VitonPTFE,
16	Seal block	1	PTFE,SUS304,SUS316
17	Seal block spring	1	SUS316
18	Sealing lid	1	SUS304,SUS316
19	Inner Hexagon screw	4	SUS304
20	Hexagon screw	1	SUS304
21	Double-headed screw	1	SUS304
22	Hexagon nut	1	SUS304

The Dimension of Pneumatic Wafer V-type Ball Valve
Company Introduction
Zhitai Valve Co., Ltd is a member of Valve Association of Longwan District, is located in Longwan Central Industrial Zone, Wenzhou City. It'a professional technology company integrated with development, manufacturing, sales, and after-sales services of valve actuators and and self-controlled valves. Presently, our main products include: pneumatic actuators, pneumatic valves and pneumatic control valves; electric actuators, electeic valves and eletric control valves; automatic control products. Our products are widely applied in natural gas, electricity, petroleum, chemical, metallurgical, construction, pharmacy, paper, printing and dying. Zhitai series actuators and valves are the best choice for automatic fluid control engineering and equipment manufacturing. We sincerely welcome customers from home and abrode to visit us for supervision, communication and cooperation. It's a great honor for us to cooperate with you.

---
