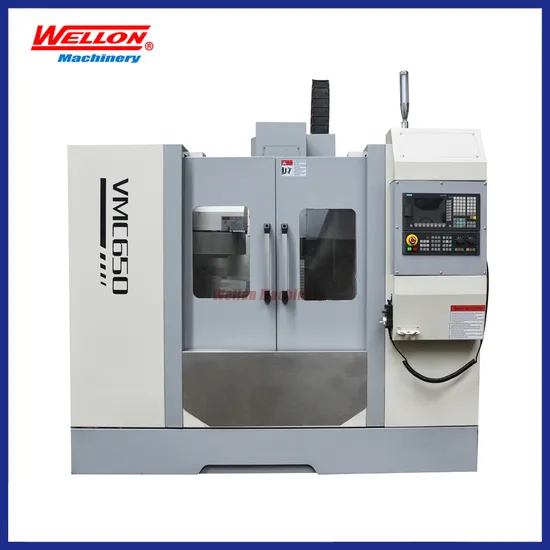

Wellon 3 Axis CNC Vertical Machining Center Vmc650

Product Description

Detailed Photos
Main configuration & accessories:
1Resin sand casting, Meehanite HT-300;
3X, Y, Z rails adopt stainless steel telescopic cover;
4Roller type linear guideway from Taiwan
5Ball lead screw from Taiwan
6Standard with belt driven spindle, optional for direct driven spindle;
7pneumatic cylinder;
8Taiwan ATC, umbrella type and disc type are available;
9. Import bearings for leadsrews;
10Import coupling;
11Headstock Nitrogen balance system as option;
12Full enclosed cover;
13Rigid tapping;
14Spindle center ring blast;
15Work lamp;
16Pilot lamp;
17USB and Internet interface;
18Manual pulse generator (MPG);
19entralized automatic lubrication system.
20Cooling system.
21Heat exchanger for electrical cabinet ;
22Leveling blocks & bolts;
23Toolbox and tools;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Product Parameters

Item	Unit	VMC650
Capacity
X axis travel	mm	600
Y axis travel	mm	500
Z axis travel	mm	500
Spindle nose to worktable	mm	120-620
Spindle center to column	mm	550
Leadscrew and guideway size
Leadscrew diameter X,Y,Z	mm	Φ40
Linear guideway width X,Y,Z	mm	35/35/35(Ball)
Worktable size
Worktable Length	mm	800
Worktable width	mm	500
Max loading capacity	kg	400
Spindle
Spindle taper		BT40
Spindle speed	rpm	8000
Main motor power	kw	5.5/7.5
Feeding system
Fast moving speed (X/Y/Z)	m/min	36/36/36
Cutting speed	mm/min	1-10000
Feed motor power	N/M	8/8/12
Tool Magazine
Capacity	pcs	Umbrella 16
Max tool diameter	mm	100
Max tool weight	kg	6
Max tool length	mm	250
Accuracy
Positioning accuracy	mm	0.008
Repeat accuracy	mm	0.005
Machine dimensions
Length	mm	2800
Width	mm	2200
Height	mm	2800
Weight	kg	3900

Standard accessories:
GSK control system
Taiwan Spindle: 8000rpm belt type
16 tools ATC Umbrella type
3-Axis linear guideway from Taiwan Hiwin,
Ball leadscrew from Taiwan,
USB interface
Rigid tapping
Full closed cover
Automatic lubrication
Coolant system
Work lamp
Heat exchanger in cabinet
Tri-color indication lamp
Air gun+Water gun
MPG
