Metal Magnetic Core Drilling Machine JD2-30E

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:

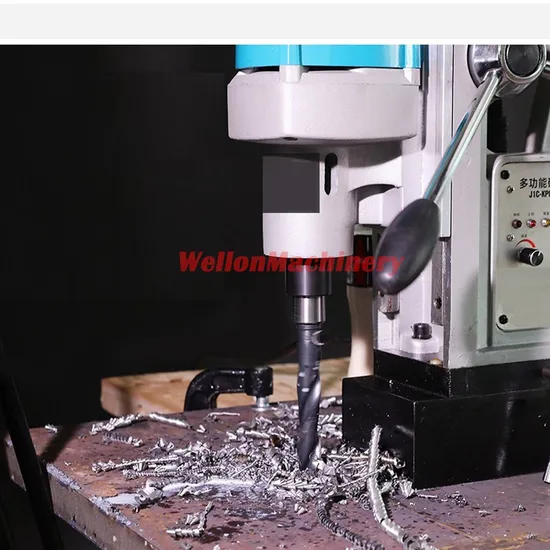

Magnetic drills are a more efficient way to drill a hole through steel,
This light weight, portable machine is held in place by a strong magnetic base plate .so is capable of cutting
very accurate holes into steel plate and castings. For boring, clean and accurate holes these broachers are
ideal for industrial use.
Very compact size and lightweight design which comes in handy for overhead use
Easy change chuck - nothing needs to be removed to insert it
Technical parameter:

Product model	JD2-30E
Drill range	30mm
Rated voltage	110/220V
Rated frequency	50-60Hz
Spindle taper	MT3
Rotating speed	0-300 rpm
Variable speed	Yes
Positive/negative direction	Yes
Tapping capacity	M18
Max travel	180mm
Magnetic adhesion	14000N
Rated unput power	1600W
Machine weight	26.9kg

Standard accessories:
Drill chuck and arbor
Optional accessories:
Tapping chuck and arbor
Coring attachment
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Lathe Machines,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
