Welcome to visit

Rubber Foam Pipe/Sheet Making Production Line, Rubber Foam Pipe for Air Condition/Ventilation System

US$550,000.00 1 Set (MOQ)

Basic Info.

Model NO.
150mm
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Type
Rubber Extruder
Model Number
Bn150-01-00
Screw Diameter
150mm
Color
Based on Customer Demand
Dimension(L*W*H)
3500*1000*1520mm
Weight
6000kgs
Power
55kw
L/D
20:1
Vacuum System
Yes
Screw Speed
2-45
Gear Reducer
18.5:1
Capacity
1000kg/Hour
Place of Origin
Zhejiang, China (Mainland)
Transport Package
Wooden Pallet
Specification
150mm
Trademark
ZHEJIANG BAINA
Origin
Zhejiang
HS Code
84778000
Production Capacity
10 Set/Sets Per Year

Product Description

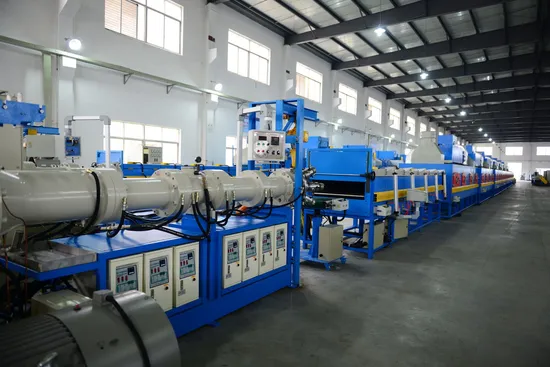

Rubber(EPDM or NBR&PVC) foam sheet or pipe production line
function: for air condition/ventilation system


Various types of basic parameters:
Item Diameter of screw(mm) L/D ratio speed of screw(r/min) Driving power(kw) Max output of production (kg/h) Weight(kg)
150mm 20D (vacuum) 150 20:1 0-45 160 1000 6500
150mm 16D 150 16:1 0-45 132 800 6500
120mm 20D (vacuum) 120 20:1 0-50 110 700 5200
120mm 16D 120 16:1 0-50 110 600 5200
90mm 20D (vacuum) 90 20:1 0-55 55 320 3200
90mm 16D 90 16:1 0-55 55 280 3200
75mm 20D (vacuum) 75 20:1 0-55 37 160 1200
75mm 16D 75 16:1 0-55 37 140 1200
50mm 12D 50 12:1 2-70 7.5 50 600
The rubber extruder can produce:
(1) Rubber single wall hose, rubber composite hose
(2) Rubber braiding hose, rubber knitting hose
(3) Rubber profiled strip
(4) Door & window sealing strips, used for car, ship, plane, railway and home decoration
(5) Rubber profiles with metal inserts
(6) Household appliances sealing strips, used for refrigerator, oven
(7) Foam hose, foam strip
(8) Rubber profiles for construction
(9) Rubber roller coated
(10)Automobile tires, motorcycle tires
(11)Automatic lift rubber handrail
(12)Rubber sheet
Order Guide:
1. Ship date: 30----120 working days
2. Payment terms: T/T or L/C
3. Full range of devices to be provided on schedule, as per client demands.
4. Responsible for training technicians and operators for operation and maintenance of the equipment.
5. Responsible for installing and debugging all devices.
6. Formula available and long term technical supports.
7. Guarantee: One year guaranteed repair and lifelong tracking service,with parts provided.
8. All the parameters of the machine on metric units and in English.
9. Package: standard export wooden pallet.
contact person: Alice jin
