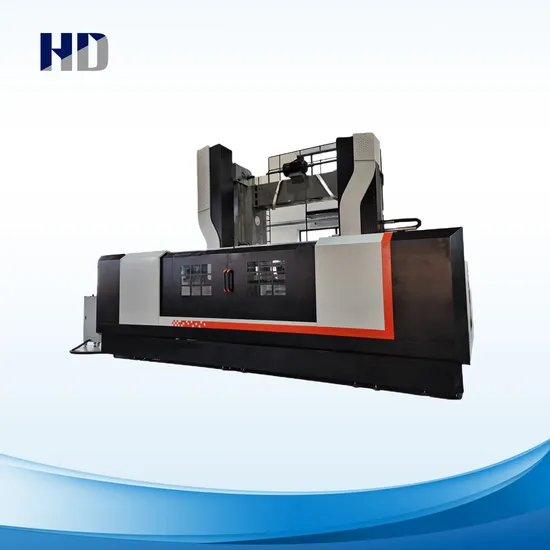

Ck5240d CNC Double Column Vertical Turning Lathe Machine

US$70,000.00
1-4 Set
US$60,000.00
5+ Set

Basic Info.

Model NO.
CK5240D
Type
Vertical Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max.Cutting Diameter
4000mm
Max.Cutting Height
1600/2000/2500mm
Max.Loading Weight
20/32t
Max.Worktable Torque
63000n.M
Worktable Speed Range
0.5-40rpm
Worktable Step Range
4 Gears Shift Stepless / 2 Gears Shift Stepless
Right Tool Post Cutting Force
35kn
Left Tool Post Cutting Force
28kn
Tool Post Horizontal Travel
2150mm
Tool Post Vertical Travel
1000/1400mm
Main Motor
55kw
Tool Post Rapid Speed
2000mm/Min
Crossbeam Speed
380mm/Min
Machine Weight
118/127/178kg
Transport Package
Wooden Cases
Specification
6900*5200*6600mm
Trademark
HAIDI
Origin
China
HS Code
8458911090
Production Capacity
30 Sets/Month

Packaging & Delivery

Package Size
720.00cm * 550.00cm * 690.00cm
Package Gross Weight
196000.000kg

Product Description


Product Picture
Specification Parameter
Specification Unit CK5225 CK5232 CK5235 CK5240 CK5250 CK5263
Max.Cutting Diameter mm 2500 3200 3500 4000 5000 6300
Max.Cutting Height mm 1600/2000/2500 1600/2000/2500 1600/2000/2500 1600/2000/2500 2000/2500/3150 3150/4000
Worktable Diameter mm 2250 2830 2830 2830/3200/3600 4000/5000 4500/5000/5700
Max.Loading Weight T 10/16/20 10/16/20 10/16/20 20/32 32/50 60/80
Max.Worktable Torque N. m 63000 63000 63000 63000 100000 100000/150000
Worktable Speed Range rpm 2-63 2-63 2-63 0.5-40 0.5-40 0.5-38
Worktable Step range 4 Gears Shift Stepless / 2 Gears Shift Stepless
Right Tool Post Cutting Force Kn 35 35 35 35 35/50 50/80
Left Tool Post Cutting Force Kn 28 28 28 28 28/40 40/70
Tool Post Horizontal Travel mm 1400 1700 1900 2150 2765 3450
Right Tool Post Feed Range and Steps mm/min 0-500 ( Servo Stepless )
Tool Post Vertical Travel mm 1000/1250/1400 1000/1250 1000/1250 1000/1400 1250/1400/1600 1600/2000
Main Motor kw 55 55 55 55 AC55/75 AC75/90/110
Tool Post Rapid Speed mm/min 2000
Crossbeam Speed mm/min 380
Machining Precision -- IT7
Positioning Precision mm 0.03
Repositioning Accuracy mm 0.015
Machine Weight t 32/34/36 37/39/41 39/41/43 43/45/48 60/65/70 118/127/178
Overall Dimension(L*W*H) mm 5180*4700*4800 6310*4950*6245 6610*5100*6245 6900*5200*6600 9200*5800*7700 11500*7500*9300

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
