MAIN FEATURES
01Adopt Xinchai diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency.
02Double-function clutch,10 inches, high transmission capacity, reliable, comfortable manipulation.
03Gearbox using 4 × 3 (1 +1) engaging sleeve, shuttle-type gearshift, there are 12 forward gears, 12 reverse gears, reasonable match between the gears, and have high efficiency.
04Independent power take off device, smooth transmission, large capacity, speed (540/760, 540/1000 r/min) for selection to meet the different operation requirements.
05Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy.
06Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good.
07Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned.
08Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio.
09New streamlined appearance, generous, modern, fashion.
10Control levers can be mounted at side as optional, more convenient and comfortable.
MAIN TECHNICAL PARAMETER

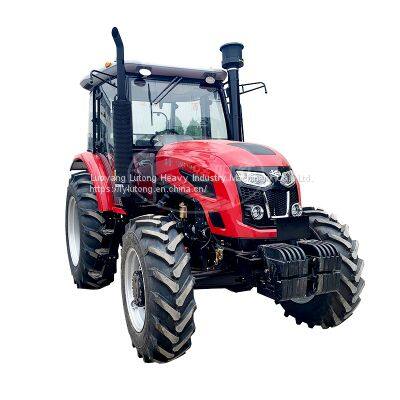

Tractor Model
| LT504
|
Drive Type
|
|
Overall Dimension L×W×H(mm)
| 3770×1620×2130
|
Wheel base(mm)
| 1990
|
Front wheel tread(mm)
| 1265
|
Rear wheel tread(mm)
| 1200--1500 (Common 1300)
|
Min. ground clearance(mm)
| 330
|
Min. steering radius
| Unilateral brake(m)
| 3.8
|
Not unilateral brake(m)
| 4.3
|
Min. operating weight (KG)
| 2080
|
Gearbox gears number
| 12F+12R
|
Speed
| Forward(Kw/h)
| 2.55-34.02
|
Reverse(Kw/h)
| 2.24-29.82
|
Engine
| Model
| A498BT-6A
|
Rated power (Kw)
| 36.8
|
Rated speed (r/min)
| 2400
|
Tires spec.
| Front tires
| 8.3-24
|
Rear tires
| 13.6-28
|
Steering Type
| Full hydraulic? front wheels steering
|
Max. lifting force( KN )
| 8.28
|
PTO
| Type
| Rear-mounted, Semi-independent type
|
Speed (r/min)
| 540/760 or 540/1000
|
Power(Kw)>
| ≥31.3
|
Control type of ploughing depth
| Height control & flotation control
|
Max. traction force (KN)
| 11.7
|
Front / rear Ballast (KG)
| 104/220
|
>>
