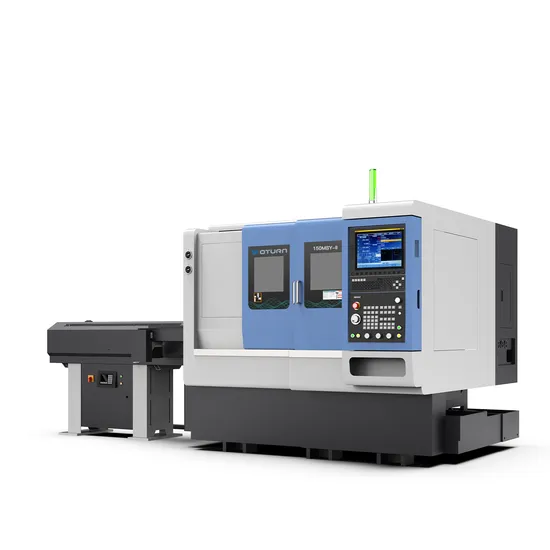

Twin Spindle CNC Turning Center Esy150msy2 for Heavy Cutting

Product Description

Product Description
High-strength HT300 one-piece structure casting iron bed, 30-degree step type flat rail structure, application of finite element analysis, excellent overall mechanical rigidity and stability, and can maintain long-term reliable accuracy, processing stability and tool life, stress relief treatment improve accuracy and stability, high-strength roller rail design, drive system adopts screw pre-tension design, improve response rigidity.
Both ends of the workpiece can be processed at the same time in one clamping, which greatly simplifies the manual operation, increases the output and reduces the process. The second spindle is capable of full turning and can express workpieces during machining, reducing cycle times.
1.Direct drive synchronous electric spindle device: magnetic ring type incremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminate the vibration of spindle, and the deflection accuracy of the nose end is within 0.002mm. Improve the surface finish of the workpiece.
The rear-mounted rotor is used to facilitate installation and maintenance.
The spindle motor is equipped with cooling system to suppress the influence of thermal displacement and ensure a constant working temperature of the spindle. The spindle system has passed the strict dynamic balance test. It has good precision retention, high rigidity and high efficiency, so that the machine can not only complete finishing machining, but also rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high finish product.
2.High rigidity integral servo power turret. With rapid and precise tool change performance. The tool holder installation used high-rigidity BMT interface, and the power transmission shaft is driven by servo spindle motor.
3.The machine is equipped with THK linear guide rail and ball screw. The heat-treated and precision-ground ball screw can ensure the best precision and durability. Each axis adopts a direct transfer shaft structure and a double-anchor pre-relay method, which can minimize thermal displacement and greatly improve machining accuracy. High rigidity, large size, and heavy-duty linear slide rails can keep the accuracy of the machine unaffected when it is impacted, the displacement is smooth and the noise is low, which can prolong the service life.
4.Standard configuration FANUC system, and the feed drive adopts FANUC servo motor.
5.Perfect hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components, greatly reducing the failure rate. The design of the hydraulic and lubrication system is simple and reliable.
6.Using Taiwan rotary chuck, oil cylinder and automatic chip removal device, which can greatly reduce the labor intensity of the operator and realize safe and efficient production. The above functional components can be controlled by programming. Special fixture.

Product Parameters

Name	Unit	SY150MSY-II/E
The largest diameter rotating bed	mm	Ф380
Max. processing diameter	mm	Ф100
Max.swing Over Cross Slide	mm	Ф160
Max.processing length	mm	150
Spindle nose	/	A2-5
Max.speed of spindle	rpm	6000
Hydraulic Cylinder/Chuck	/	6"/5"
Spindle hole diameter	mm	Ф56
Bar diameter	mm	Ф45
Direct drive electric spindle power	kw	11
Spindle direct drive motor torque	Nm	61-125
Spindle nose	/	A2-4
Max. speed of spindle	rpm	6000
Hydraulic Cylinde/Chuck	/	6"/30
Spindle hole diame	mm	Ф46
Bar diameter	mm	Ф32
Direct drive electric spindle power	kw	11
Spindle direct drive motor torque	Nm	34-67
X1/Z1/Y axis motor power	kw	1.8/1.8/1.8
X2/Z2 axis motor power	kw	1.3/1.3
X1/Z1 axis travel	mm	135/370
X2/Z2 axis travel	mm	215/400
X/Z/Y/S axis rapid speed	mm/min	30/30/6/30
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
X1/Z1 axis Slide rail type	mm	35/35(Roller)
X2/Z2 axis Slide rail type	mm	30/30(Roller)
The cutter tower type	pcs	BMT45-12T
Power cutter tower motor	Kw	4.0kw
Y axis travel	mm	80(±40)
Maxi.speed of	rpm	5000 ER20
The cutter biock specifications	mm	20x20
Circular cutter holder specification	mm	Ф32
The adjacent tool change time	sec	0.15
The cutter tower type	pcs	NC8T
The cutter biock specifications	mm	25x25
Circular cutter holder specification	mm	Ф32
The adjacent tool change time	sec	0.15
Machine size	m	2.2x2.1x1.7
Machine Weight	kg	3500
Cutting fluid tank volume	L	150
Volume of hydraulic unit box	L	40
Hydraulic oil pump motor power	kw	1.5
Volume of lubricating oil tank	L	2
Auto lube pump motor power	W	50
Cooling water pump power	W	750
