Dry Ginger Turmeric Powder Crushing Grinder Turmeric Grinding Machinepopular

Product Description

Product Description
Dry ginger turmeric powder crushing grinder turmeric grinding machine

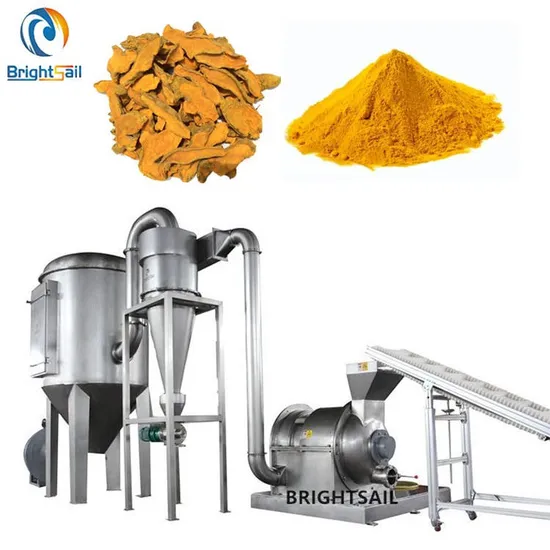

BSDF turmeric grinding machine includes:
1) crusher part
2) cyclone (discharge system)
3) pulse dust collecting system
4) blower
5) electrical control box
Material is sent to mill chamber to be crushed, by force of blower, powder will go to cyclone and be discharged, the ultra-fine powder will be seperated to dust collecting box.
The production process is dust-free and continuous. BSDF advanced turmeric grinding machine is suitable for grinding spices, like ginger, garlic, chilli...etc.

model	BSDF-750	BSDF-650	BSDF-550	BSDF-450
rotor speed (rpm)	2100-2700	2400-3100	2900-3600	3300-4200
hammer knife qty (piece)	136	112	80	80
grind motor (kw)	55	45	37	30
feed motor (kw)	0.25	0.25	0.25	0.25
discharge motor (kw)	1.5	1.1	1.1	0.75
blower (kw)	22	18.5	18.5	15
grind fineness (mesh)	20-120	20-120	20-120	20-120
capacity (kg/hr)	800-1300	600-900	400-800	300-500

Detailed Images
Crusher part:
It combines coarse crushing area, middle fine milling area and super fine milling area together. Each group has one unit of knives and one liner.
Material is fed into the mill chamber, pass through the high speed rotation caused by the three groups of knives one by one.
Material is crushed three times in one mill chamber, then become fine powder. Between middle fine crush knife group and fine mill knife group, there is a device designed for preventing coarse granule going to fine milling area, so powder fineness is assured.
The rotor speed is controlled by inverter, different particle size is achieved by adjusting rotation speed.
Advantages of BSDF turmeric grinding machine:
1) No need screen or sieve in mill chamber, change powder particle size by changing speed through inverter;
2) Because it has no screen in mill chamber, it can make finer powder than common hammer grinder machines.
3) The mill part combines coarse crusher, middle fine mill and fine mill together, which means it can makes fine powder directly from big raw material, very effective. Then, no need to crush big material firstly.
4) It can save more power, its capacity is much bigger than other traditional hammer mills.
Cases of our BSDF turmeric grinding machine for our clients:
This line is for our client in New Zealand, they purchased the BSDF-750 grinder machine, screw feeder and sifter machine for grinding chickpeas into fine flour.
These are the BSDF-750 grinding machine with conveyor machines and sifter machine for our Pakistan client, they use this line for making spices and chickpea powder.
capacity: 20-100 kg/h capacity: 70-150 kg/h capacity: 200-500 kg/h

If you need small capacity or if you don't need fine powder, there are other different grinder machines for your choices.
The price of our smallest hammer grinder is 2800 USD. If you are interested in our BSDF turmeric grinding machine, please send us an inquiry for a detailed offer. Not only spice and herb powder grinding mill!
We provide overall one-stop spice & herb product processing machines and solutions.
We provide washing machine, cutting machine, dryer, roasting machine, crusher, grinder, pulverizer, mixer, filling and packing machines...etc.
