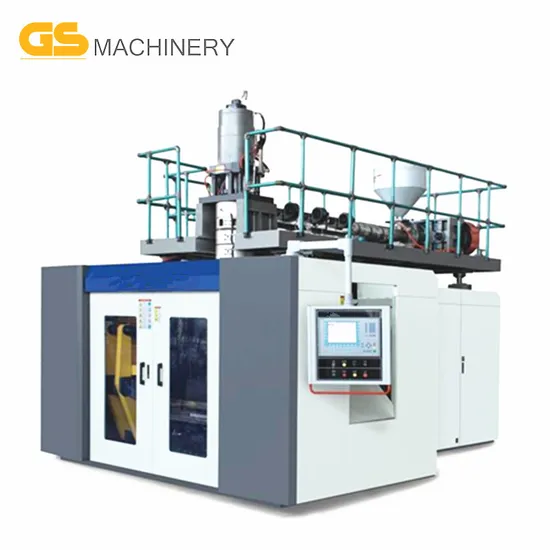

High Speed Double Station Blow Molding Machine for 20L 30L Jerrycans

Product Description

Product Description
GS-30L-II can produce various plastic components widely used in industry, agriculture, chemical, etc., including package for chemicals, foodstuff, paints and medicines, plastic tool box, oil tank, hollow parts of car, interceptor, hollow seat, table-top, big extruded toy, pontoon, plate, and big extruded pipe. With the output reaching 90-110 BPH, this machine is for 20L jerrycans in 800g-1kg.
Its control system adopts closed loop control imported from Europe and hydraulic system is pressure-flow doubleproportional control equipped with variable plunger pump to ensure fast and smooth operation of the machine and energy consumption of the hydraulic system can be reduced by 30% or above, saving considerable electricity.
Setting:
Clamping: Double station +High-precision guide +large arm cylinder axle
Extrusion system: Hard gear surface reducer +Japan inverter
Die system: Central-incoming extrusion die with special steel
Hydraulic system: Japan hydraulic valve seal and proportional control
Control system: Japan PLC +Imported HMI+PLC automatic WITH SERVO MOTOR SYSTEM FOR OPTION, REXROTH (Germany) or Delta+phase brands, saving 30-60% The maximum blow volume is 30L, PE, PP, EVA , TPU, etc. can be used. 2. Taiwan DELTA servo system, could save energy consumption 20% for option
3. Different screws and die mandrels, channel styles will be designed based on the specifics of different plastics;
4, It is convenience to refueling, change color, purge, disassembly and cleaning with those die head. Symmetry part of the wall thickness is very uniform;
5, Double proportional valve control oil flow and pressure, directional valve control flow way, deceleration valve brakes, achieve smooth and fast action;
6, mold carriage is with high-precision linear railway guide, every part of template bears the similar clamping force,
7, Extruder platform can be lifted, easy to adjust the parison length
8. Whole blow pin frame could be turned over onto top platform, convenient for mold change.
9, Design is based at CE safety standard, concerning about user safety;
10, Inverter is from Taiwan DELTA, adjust the screw speed, saving energy ;
11, automatic lubrication system, automatic alarm function, more concerned about the user;
12, Equipped with high temperature alarm function.
MACHINE ADVANTAGES
1. with well-known liner guide rail from Taiwan; great clamping force and explosion-proof;
2. patented die head, easy for changing color.
3. Computer intelligent control system, operation, set and modify the production process conveniently
4. Deep mirror treatment is used inside the die head, curve flow channels are smooth, no dead ends, no carbon left;
5. Strengthened and hardened cold treated screws, screw and barrel are with wear resistance; parts of tube wall thickness are very uniform
6. Various components are produced with Japan's CNC machine tools, use Mazak to process six-sided installation surfaces at the same time. Imported well-known brands Hydraulic, pneumatic and electrical parts are equipped to ensure that the rigorous process, stable and reliable quality. Detailed Photos
Product Parameters

Specification		GS-30L-II
Material		PE,PP…
Max.container capacity	L	30
Number of die	set	1
Machine Dimension	m	5.2×3.9×4.2
Total weight	ton	19
Accumulator head		GS-30L-II
Accumulator capacity	L	4.4
Power of die heating	KW	18
Number of heating zone	zone	5-8
Die diameter	mm	300
Center distance of twin head	mm	300
Clamping force	KN	170
platen opening stroke	mm	450-900
platen size	mm	680×750
Max mould size	mm	560×650
Mould thickness	mm	460-500
Main extruder Unit		GS-30L-II
Screw diameter	mm	90
Screw L/D ratio	L/D	25:1
Extruding Volume	Kg/hr	120-200
Number of heating zone	zone	5
Extruder heating power	KW	29
Extruder driving power	KW	55
Power Consumption		GS-30L-II
Oil pump power	KW	22
Servo motor power	KW	4
General assembly power	KW	130
Average energy consumption	KW	60
Air pressure	Mpa	0.6
Air consumption	m³/min	1-1.5
Cooling water consumption	m³/min	2.5-3.5

Certifications
Packaging & Shipping
Company Profile
Great Supreme Industry Limited is an enterprise professionally manufactures HDPE blow moldingmachines, Injection machine and Plastic molds. We are devoting ourselves to technical research in order to build up a good reputation & famous brand. have already established business relations with more than 80 countries in Asian, Middle East, Africa, South America, European. There are departments special for machinery development and plastic molds development. foreign advanced technology and management system, under advantage of our solid technical power (professional engineers, large-scaled workshops, good design techniques), we are capable of having been developing different models of blow molding machine to supply the best quality products and service to the customers. High quality but reasonable price has been widely approved by our customers both in home and abroad. -Extrusion blow molding machine is for 50ml-200L PE/PP bottles, jerrycans, and drums.
-Engineer is available to overseas for installation, commissioning, and short-term training.
-All easy-wearing parts or components are available in our own warehouse.
-We guarantee the quality, and provide good service to customers.
Our Advantages
1. Toggle-balanced clamping frame, with well-known liner guide rail from Taiwan; great clamping force and explosion-proof;
2. Can be achieved 16 blow pins at the same time perpendicular to the mold pin blow hole; patented die head, easy for changing color.
3. Computer intelligent control system, operation, set and modify the production process conveniently
4. Deep mirror treatment is used inside the die head, curve flow channels are smooth, no dead ends, no carbon left;
5. Strengthened and hardened cold treated screws, screw and barrel are with wear resistance; parts of tube wall thickness are very uniform
6. Various components are produced with Japan's CNC machine tools, use Mazak to process six-sided installation surfaces at the same time. Imported well-known brands Hydraulic, pneumatic and electrical parts are equipped to ensure that the rigorous process, stable and reliable quality.
After Sales Service
-Installation & testing
A technician shall be sent to test the machine till it can work normally upon buyer's notification when everything is ready for installation and testing. The buyer shall bear all the charges involved since the technician leave off seller's company till he gets back, charges including transportation expenses, visa fee, accommodation, and insurance, etc. If the technician is required to go abroad, USD 120/day shall be charged as the service fee within the same time period stated above.
-Warranty & Guarantee
We provide 2 years guarantee since machine is running normally at buyer's factory.
The seller shall deal with all the problems due to the quality of the machine within the guarantee
period, with the damaged parts (unit price > USD 50) sent back for new ones.
Our company act strictly according to the requirement of ISO 9001 quality system with every spare part registered before shipment so as to assure prompt service.
24hours online for technical support

---
