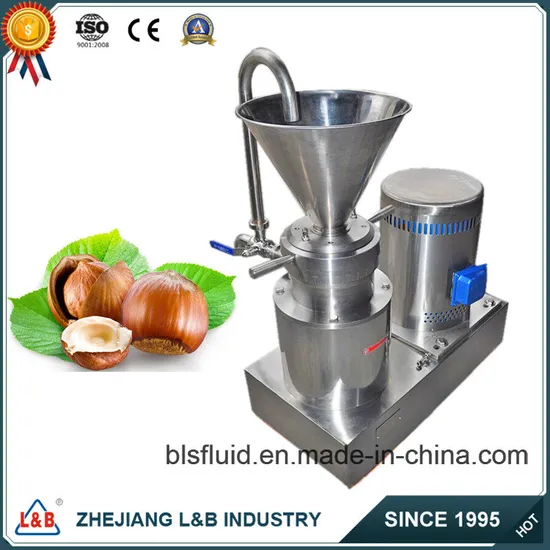

| Product Name: | stainless steel colloid grinder hazelnut paste machine |
| Description: | Designed according to ISO9001 standard, widely used for grinding media in the food-processing, cosmetics and pharmaceutical industries |
| Construction: | Horizontal JMW Series and vertical JML series, Split JMF series |
| Material: | SS304/SS316L |
| Seal Material: | EPDM, Viton (Standard, FDA approval) , Packing Seal |
| Max. working temperature: | 120 C / 248 F |
| Max. RPM: | 2800 RPM |
| Rotor Type: | teeth |
| Motor power: | 1.5kw, 2.2kw, 3kw, …22KW,30KW |
| Sealing option: | Sanitary single mechanical seal/Double mechanical seal with cooling system, Packing seal |
| Voltage: | 110-480V |
| Motor: | Siemens, ABB, LOCAL,50hz/ 60hz |
| Surface treatment: | Inner polished and Sandblast outside |
| Availably connection: | Clamp, Thread Butt weld, Flange |
| Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: | Electric |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic, etc |
| Packaging Details: | Plywood case or as per the request of customers |
| Model | Emulsified size (um) | Output T/h | Millstone Dim(mm) | Cooling water pipe(mm) | Outlet Dim (mm) | Inlet Dim (mm) | Speed (rpm) | Power (kw) |
| JMF-65 | 2-40 | 0.02-0.5 | 65 | 10 | 20 | 30 | 2800 | 2.2 |
| JMF-80 | 2-40 | 0.3-1 | 80 | 12 | 25 | 48 | 2800 | 4 |
| JMF-100 | 2-40 | 0.5-2 | 100 | 12 | 25 | 66 | 2800 | 5.5/7.5 |
| JMF-120 | 2-40 | 0.5-3 | 120 | 12 | 32 | 66 | 2800 | 7.5 |
| JMF-140 | 2-40 | 0.5-4 | 140 | 12 | 32 | 66 | 2800 | 7.5/11 |
| JMF-180 | 2-40 | 1.0-7 | 180 | 12 | 38 | 100 | 2800 | 11/15 |
| JMF-200 | 2-40 | 1.0-10 | 200 | 12 | 38 | 100 | 2800 | 15/18.5 |
