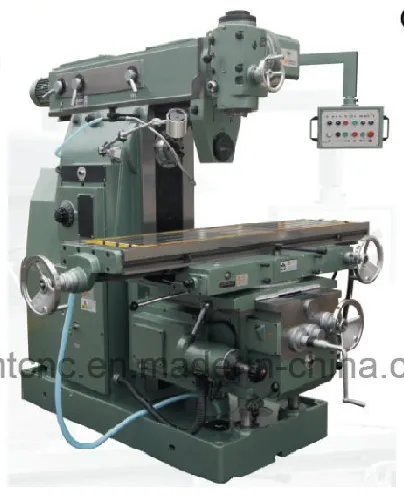

Universal Rotary Head Knee-Type Milling Machine (milling equipment) X6242b

US$13,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
X6242B
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Size
1800X420mm
Max. Loading
800kgs
Main Motor Power
11 Kw
Horizontal Spindle Taper
7:24:20 ISO50
Transport Package
Standard Plywood Package
Specification
CE
Trademark
WMT
Origin
Anhui
HS Code
84592900
Production Capacity
50 Sets/ Month

Product Description

Turret Milling machine
Specification:
Retangular guide rail,good stability
High-frequency hardend slide rails
X.Y Z axis auto feeding
Milling Machine has added 360 degree swivel table
Specification Unit X6242B
Worktable size mm 420x1800
T slot(Nx W x D) mm 3x18x90
Max.loading of worktable kg 800
Worktable travel:Longitudinal/Cross/Vertical(Y/X/Z) mm 1200/1180,360/350,470/450
Max.rotary angle of worktable ±45°
Horizontal spindle taper 7:24:00/ISO50#
Horizontal milling spindle bore mm 29
Distance from horizontal milling spindle face to worktable mm 30-500
Distance from horizontal milling spindle center to arm mm 201
Vertical/horizontal milling spindle bearing diameter mm 95/100
Vertical spindle taper 7:24:00/ISO40#
Vertical spindle bore mm 20
Distance from vertical spindle face to horizontal spindle center mm 60-140
Distance of vertical spindle movement mm 80
Rotary angle of universal milling head 360°
Horizontal spindle speed rang/steps rpm/steps 30-1500/18
Vertical spindle speed rang/steps rpm/steps 52-1400/12
Feed speed steps steps 18
Feed speed range:X/Y/Z mm/min 22-1100,22-1100,8.3-410
Rapid feed speed range:X/Y/Z mm/min 2400/2400/900
Main motor power/rotating speed kw/rpm 11/960
feed motor power/rotating speed kw/rpm 3/1420
Coolant pump power/rotating speed kw/ L/min 0.12/2760
Vertical milling head motor power/rotating speed kw/rpm 3/1420
Machine dimension mm 2522x2262x2210
Machine weight kg 5300
