Marble Block Cutting Machine Manufacturers

Product Description

wanlong Multi blade stone block cutting machine
-marble block cutting machine manufacturers
Product Description:
---ourblock cutting machine combines different diameters of blades working simultaneously as multiblade cutting.
---our block cutting machine has screw-rod lifting system and hydraulic lifting system for choice.
---The crossbeam moves for feeding so that the table for block is not necessary ( which does not supply along with machine, only available upon request ).
---Heavy duty strcuture, logical control system, easy operation together with " Wanlong" blade give high production and also make the finish slab with flat surface, no tapper.
---The block cutting machine cutteris also flexible in modification for Single blade cutting.
---More details of this block cutting machine
Technology parameter:

		QSQ-2200	QSQ-2500	QSQ-3000
Max.diameter of blade	mm	2200	2500	3000
Max.No. of blades	pc	8	5	1
Recommended Blade Combination	mm	2200 2000 1800 1600 1400 1200 1000 800	2500 2000 1600 1200 800
Recommend saw blade thickness	mm	6.5	32	8.0
Main motor power	KW	45	45	37
Max.Cutting size(L x W x H)	mm	3200*1800*950	3000*1800*1100	2500*1800*1350
Overall dimensions (L x W x H)	mm	7300*3800*5500	7300*3800*5500	7300*3800*6100
Water consumption	m3/h	6	6	6
Approximate weight	Kg	10000	11000	12000

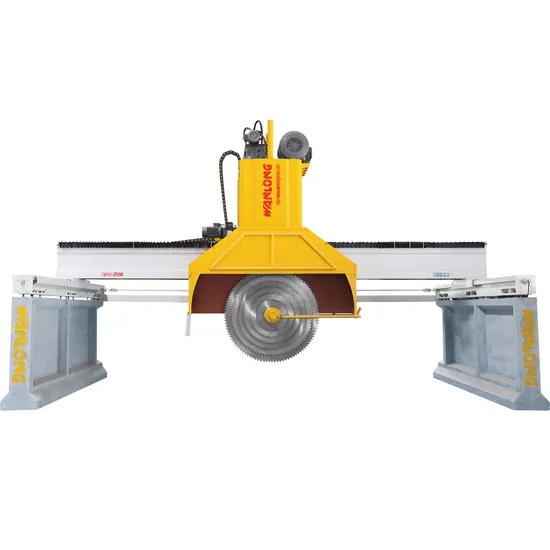

Bridge granite multi cutter machine
wanlong stone cut saw for granite block with matched multi-blades
Fully controlled by the computer, this machine can work by program automatically
High efficiency for cutting large block, stab...
Fully controlled by the computer, this machine can work by program automatically
High efficiency for cutting large block, stable and reliable
Max. Dia. Of blade: 2500mm
Max. Cutting length: 3200mm
Max. Cutting width: 2500mm
Max. Cutting height: 1100mm
Max. No. Of blade:9
Main motor power: 37kw,45kw,5kw
Overall dimension (LxWxH): 7300X3800X5700mm
Total Weight: 11000kg
Delivery: 35-45days as per produciton schedule and quanity.
if your order is in our stock, we can effect shipment once received your payment

PACKAGE:
Suitable for seaworthy container shipment

WARRANTY:
12 MONTHS

SHIPMENT WAY:
-by sea: can be Less than Container Load and Full Container Load; freight is according to the shiping company quoation to your seaport.
-you can consult us when you make inquiry.

Our Services
Service:
- fast deliver time: 7- 15 days.
to rough idea: most of order lead time is 7 days-10days.
-consistent quality control:
Raw material: have advanced device for diamond, powder ete inspection;
Production: production procedure been strictly controlled by quality controlled department;
Finshed product: All produced product has been inspetion and approved before shipment.
-any quality related problem that we are care and will solved for client.
SALES NETWORK


Europe:
Ukraine, Poland, Bulgaria, Romania, Czech, Yugoslavia,Latvia,
Lithuania,Sweden, Finland, Danmark, Spain, Greece, Turkey
South Asia:
India, Pakistan, Bengal, Sri lanka, etc
South East Asia:
Indonesia, Vietnam, Thailand
Mid East:
Iran, Saudi Arab, UAE, Syria, Lebanon, Israel etc
Africa:
Egypt, Nigeria, Kenya, Ethiopia, South Africa,
America:
USA, Canada, Mexico, Brazil, Venezuela, Chile, etc
Oceania:
Australia, New zealand
About WANLONG GROUP
Diamond tools: 's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 10 years in the line of diamond tools industry, 's technological innovation improves the cutting efficiency, and save the cost for end-users.
Stone Industry: developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).
Machinery: Mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. 18 years' practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. machinery will fit the needs of customers with more sophisticated services to fulfill the mission.

Contact information
More details about our multi saw block cutter , welcome your contact to Lisa Fu at:

---
