Product Description
Product Description

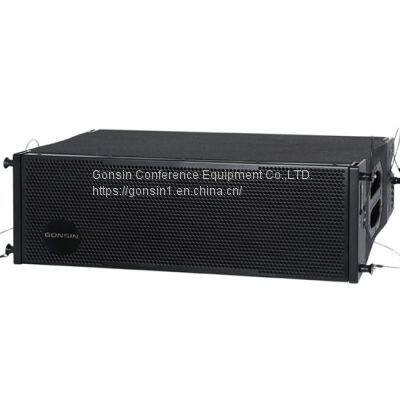

The GX-SP2012DL-Z line array 12 is a large-scale two-way crossover system providing a bandwidth of 55Hz-20KHz. Our 12-inch line array speakers are fitted with two British top-level 44 mm voice coil HF drivers coupled to a special constant-path aluminum horn and two 12-inch LF drivers with great dynamic margins. It produces strong penetrating power, clear and thick vocals and super high sound pressure levels. The whole speaker of 12-inch line array is beautiful and concise in shape, and exquisite in appearance, which is an extremely competitive large-scale line array system.
The GX-SP2018DSBB-Z box speaker array uses a custom-made speaker unit that is precisely modulated and the cabinet is a symmetrical compression design. It employs two 18" drivers in a symmetrically compressed enclosure, featuring extremely deep low frequency which has strong power and elasticity at the same time. Combined with GX-SP2012DL-Z, the box speaker line array 12-inch generates a large dynamic, high SPL, clear and delicate sound as well as a tunable full-range response range.
Box Speaker 12 Inch Line Array Technical Specifications
Model
| GX-SP2012DL-Z
| GX-SP2018DSBB-Z
|
Impedance
| 16
| 4
|
Frequency range
| 50Hz~20KHz(-10dB)
| 35Hz~350Hz(-10dB)
|
MAX SPL
| 137dB(EIAJ)
| 139dB
|
Power(RMS)
| 600W/ 2400W(PEAK)
| 1200W/ 4800W(PEAK)
|
Horizontal coverage angle
| 120
| /
|
Vertical coverage angle
| 10
| /
|
MID-LF unit
| 2*12 Mid Low,
| 2*18"Subwoofer
|
3"High power voice coil
| 4"High power voice coil
|
Ceramic alloy magnet,
| Ceramic alloy magnet
|
Waterproof paper cone
| Waterproof paper cone
|
HF unit
| 2*1"Titanium film, Neodymium magnet, 1.75"tube
| /
|
Sensitivity(1m/1W)
| 103dB
| /
|
Hanger/Installation
| Hanger for line array, two handles
| 36mm stand holder, hanger for line array, two handles
|
Cabinet
| 18mm birch plywood, black spray paint, metal mesh
|
Signal connector
| Two parallel socket of SPEAKON
|
Product Dimensions(W*D*H)
| 1010*520*350mm
| 1010*835*550mm
|
Net weight
| 46.5Kg
| 93Kg
|
Gross weight
| 49Kg
| 101.5Kg
|
As a reliable conference system manufacturer, we have types of conference room audio visual solutions for customers, if you have needs, please leave us a message.
>>
