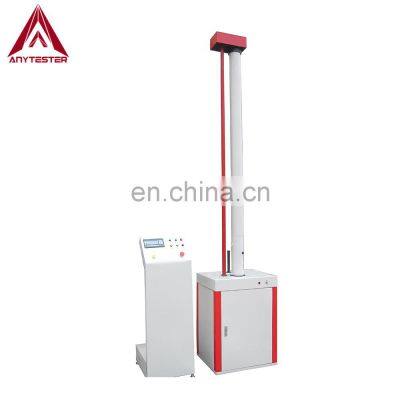

Product DescriptionAT463 Falling Weight Impact Tester is used to determine the resistance to external impact of various pipes. It is also suitable for rigid plastic sheets. Test pieces are subjected to blows from a falling striker, of specified mass and shape, dropped from a known height onto specified positions around the circumference of the test piece.StandardISO 4422, 3127BS EN 1411, 744GB/T 10002.1, 10002.3, 13664, 16800, 18477ASTM D2444Note: For more standards, please contact usFeature ★ Digital display impact height ★The working table can be adjusted up and down; the specimen can be automatically pointed to zero position ★ Lifting structure drives by induction brake motor ★ Adopt electromagnet to prevent the second impact★ Seamless steel pipe structure, not easy to deformation and the resistance during the striker falling down will be smaller★ Two type clamps available including V-shape clamp and flat clamp★ Different strikers can be selectable★ Independent control parts can protect electric units and more stableSpecificationModelAT463AAT463BStriker mass0.250~15.000kg, increment: 0.125kgDimensions for the nose of the strikerd25, d90 or customizeR5mm, 6.3mm, 10mm, 12.7mm, 30mm, 51mmImpact height50mm-2000mm610mm-3000mmHeight error±2mmLifting speed12m/minSpecimen specificationΦ10mm～Φ630mm, can be customizedPower supplyAC220V, 50HzDimensions800×800×3370mm800×800×4380mmWeight300Kg350KgPacking & DeliveryPackagingSize(mm)800×800×3370 (L×W×H)Weight300KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.PaymentPayment Term T/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIF L/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerCompany IntroductionContacting Us
>>
