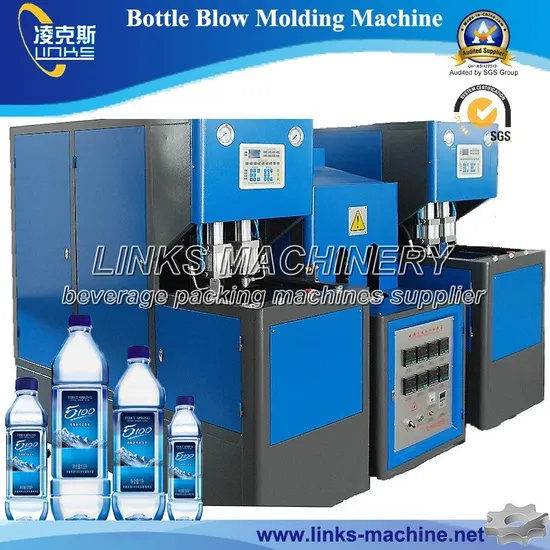

4 Cavity Semi-Automatic Pet Plastic Bottle Blow Molding Machine

Product Description

Product Description

*Introduction
Links Stretch Blow Molding Machine is suitable to produce different shapes of PET/PC/PE bottles. It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water bottles,carbonater soft drink bottles,juice bottles,medical botties,cosmetic and oil bottles etc.
1,Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.
2,Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.
3,Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing. It provides sufficient steady high pressure to blowing. It provides sufficient steady high pressure to bloww large irregular shape bottles.
4,Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.
5,Operated step-by-step and in semi-auto maode.
6,Wide-mouth jar and hot-fill bottles can also be made.
*Parameter

Model	LKS-900BHR	LKS-1500BHR	LKS-400BHR	LKS-700BHR	LKS-100BHR
Product material	PET	PET	PET	PP	PET
Bottle Volume	50-2000ML	50-2000ML	5-10L	50-2000ML	10-20L
Max.bottle height	360MM	360MM	400MM	250MM	550MM
Max.bottle diameter	120MM	120MM	220MM	80MM	280MM
Main machine (L×W×H)	1600×600×1600 MM	1600×650×1600 MM	1750×750×1700 MM	1600×650×1600 MM	2300×850×2150 MM
Main machine weight	500KG	560KG	800KG	560KG	670KG
Heater (L×W×H)	1760×630×1380 MM	1870×650×1450 MM	1870×630×1450 MM	4600×650×1400 MM	2800×770×1750 MM
Heater weight	260KG	270KG	270KG	600KG	270KG
Output	900PCS/HR	1500PCS/HR	400PCS/HR	700PCS/HR	100PCS/HR
The actual output depending on the bottle size,shape and weight
