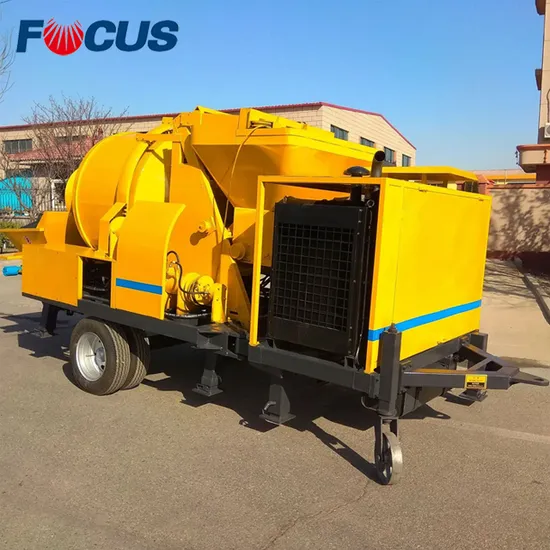

China Supplier Mini 30 Cubic Small Trailer Diesel Concrete Mixer with Pump for Concrete Mix and Transport

Product Description

China supplier Mini 30 cubic small trailer diesel concrete mixer with
pump for concrete mix and transportFOCUS ADVANTAGES
1.great mobility, very low price;
2.ISO and CE certified with 12 months warranty;
FEATURES
Why would our clients choose FOCUS trailer electric concrete mixer with Pump?
1.Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit)
with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also
much higher as well as the components' life is prolonged greatly. This is convenient for judgeing and removing
trouble.
2.Large valve changing direction, makes the main pumping loop quick response, small leakage, good
stability,high reliability and high resist contaminative capability.
3.Hydraulic system has safe relief protection,at the same time,when the system pressure is over, the
main oil pump cutting device makes itself be protected reliably.
4.Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing
pressure and economic energy control.
5.Cone sealing of all pipes make the pipe joints seal reliably.
6.The high-low pressure switch adopting cartridge valve of reduces the trouble of dismantling and
installing the oil pipe.
7.Adopt emulsification technology of initiative and passivity recovery integration.
8.Compared with domestic product, the electric control system is simplest, the element quantity is
fewest and its reliability is highest.
9.The wire remote equipment is convenient for operation far away.
10.Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch,
which ensures that the direction can be changed reliably.
11.The design of hopper and S valve and so on adopt I-DEAS software to caculate, the hopper
and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.
12.The agitator have unique form, which separates the hydraulic motor from agitator bearing pedestal.
At the same time, adopting large displacement motor ensures that the agitator moment is big enough.
13.Make sure the pumping is good and decline the phenomenon of pipe jam, the spectacles wear plate
and cutting ring should be useed in lower abrasion. FOCUS's spectacles wear plate and cutting ring use
high wear material, making the components' life prolonged greatly.
14.The hydraulic circuit will take high oil into double distributor,and then the lubricating part can obtain
hydraulic oil.It ensures the lubrication of the concrete cylinder's piston and other parts and prolongs
the life of piston and other sealings.
15.The radiator equipment makes the working oil temperature of hydraulic system below 70ºC and
makes the machine in normal status.

Items	Unit	JBS30-JZC350
Max Theoretical Conveying Capacity	m3/h	30
Max Exit Pressure	Mpa	10
Concrete Cylinder bore * stroke	Mm	140*1000
Hydraulic Oil Tank Volume	L	370
Exit Diameter	Mm	100
Conveying Pipe Inner Diameter	Mm	100
Motor Power	KW	47.55
Max Aggregate Size	Mm	30
Max Horizontal Conveying Distance	M	500
Max Vertical Conveying Distance	M	120
Mixer Model		JZC350
Input Volume	L	560
Output Volume	L	350
Mixer productivity	M3/h	12-15
Drum Diameter	Mm	1440
Drum Rotary Speed (without load)	Rpm	18
Outline Dimension (L*W*H)	Mm	4200*2300*2600
Weight	Kg	4200

ZHENGZHOU FOCUS MACHINERY
Established in 1982, Zhengzhou Focus Machinery Co., Ltd. is the explorer and by far the biggest
professional construction machinery manufacturer in Zhengzhou, China. We mainly manufacture concrete batching plant, mobile concrete mixing plant, twin-shaft concrete mixer,
small rotary concrete mixer, compulsory asphalt mixing plant, asphalt drum mixing plant,
mobile asphalt plant, trailer concrete pump, concrete pump with mixer, dry mortar mixing plant,
truck mounted concrete pump, concrete truck mixer, tower crane, construction hoist,
cement bag splitter and pneumatic conveyor, etc.
FOCUS, BUILD A BETTER WORLD.

---
