Warehouse Rack System Automatic Movable High Density Storage Racks Heavy Duty Mobile Racking Solutions with Motor Drive

Product Description

Compact storage heavy duty mobile racking solutions with motor drive
Product Description 1. GENERAL INTRODUCTION:
Compact storage heavy duty mobile racking solutions with motor drive is a high-density storage system: standard pallet racking is put onto automated mobile carriages, allowing opening and closing of the aisles. The mobile system is the best logistical solution where a combination of compact storage and individual pallet accessibility is required.
Features: The traditional static pallet rack needs a fixed aisle between two rows of racks, which occupies too much storage space, while the mobile rack only needs one aisle to produce higher warehouse storage capacity, and the warehouse utilization rate can reach about 80% to 90%.
2. WORKING PRINCIPLE:

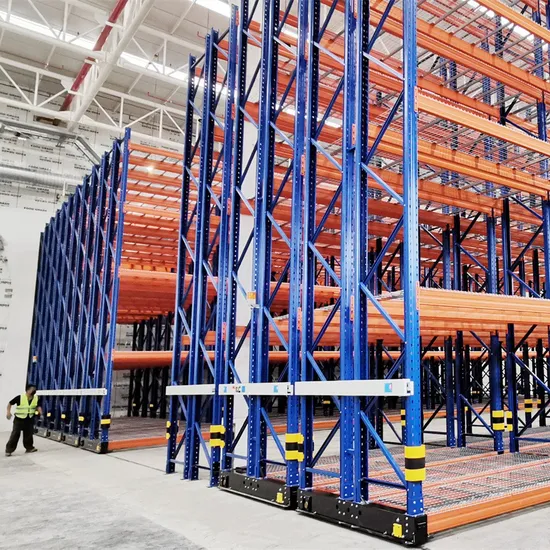

Two rows of back-to-back racks are installed on the mobile base in a group, in a multi-group arrangement, each base is equipped with multiple rollers and drive motors. Through the operation of the electronic control button control motor to drive the entire mobile base along the floor rail together to move, after moving to the operation aisle required by the forklift, you can access the goods, the mobile rack system is mainly composed of racks, mobile bases, motors, floor rails and electronic control electric parts.
Detailed Photos
Heavy-duty capacity makes it a natural choice for a number of storage challenges, from equipment and supplies to freezer and cooler storage. The ability to anchor this mobile pallet racking system to existing concrete makes it a cost-effective solution for increasing capacity in any space, without the need for renovation or expansion.
3. FLOOR RAILS:
Two ways to lay the floor rails:
1. Laying of floor rails on existing ground (it is necessary to lay the rails in the ground pits and then carry out secondary cement pouring, and use after the cement ground is hardened)
2. Laying the floor rail on the ground floor of the new warehouse (directly when the warehouse floor is built, the floor rail is pre-buried, and the ground and floor rails are leveled flat)
The first layer of concrete is poured to a depth of 100MM and then the floor rail is laid, and then the second layer is poured to the horizontal plane.
4. SAFETY PROTECTION FUNCTION:
The mobile rack is operated manually or automatically by means of an integrated PLC system, The PLC software may be adapted to the client's specific needs or linked to client's WMS. Safety is guaranteed by a photoelectric beam system. mounted on mobile rack upright. Adding P&D locations may further increase the warehouse efficiency, resulting in a higher return on investment.
5. CLASSIFICATION OF MOBILE RACK:
Electrical mobile racks can also be made into trackless, trackless mobile racks do not have to damage the ground to make floor rails, and the high-strength polyester wheels of the trolley can roll directly on the ground. Electrical trackless mobile racks are installed with ground guides on the side of the wall, generally provided for angle steel guides on the ground, while the entire row racks do not need to be equipped with floor rails.
Depending on the use environment, mobile racks can also be made into refrigerated and explosion-proof mobile racks.
Company Profile
6. FACTORY:
Packaging & Shipping
7. PACKING AND DELIVERY:
1).Packaging details: Standard export package.
Long profiles are packed in bundles on plywood or steel pallets, and covered by plastic films. Between each package, air bags are also filled if necessary. For the thinner material such as steel decking, Edge protectors are applied. The small accessories and fasteners are packed inside of the carton boxes and fixed on pallets.
2).Delivery time: For the standard products, Our delivery time is 3 weeks after receipt of the 30% deposit. Other special application of racks can be delivered within 4-5 weeks.
Certifications
9. PROJECT REFERENCE:
CALIN serves "Total Storage Solutions" through our wide products categories ranging from Selective Pallet Racking, Shelving System, Semi-automated and full automatic warehouse storages solutions. We have over 20 years of experience and expertise, in collaboration with our customers, to provide better solutions. Our expert engineer team are able to create a layout by using the latest AutoCAD software and deliver tailor-made proposal, so as to meet your exact storage and logistics needs.
We do manufacture and deliver out racking products, but more importantly, we also provide a total package services including consulting, planning and maintenance. No matter different amounts of your projects are, we fairly value at your every simple and complicated project for customers' rights. Our Customer Service will insure that your order can be delivered on time with satisfaction.

---
