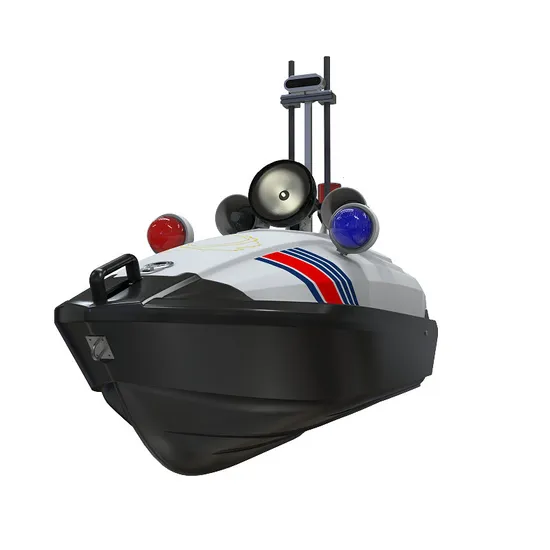

Unmanned Ship E-Tow Remote Control Ship Extended Adventures Ship

Product Description

Company Profile
Yeaowl Technology Co., Ltd., proudly located in the bustling manufacturing hub of Changping Town, Dongguan City, China, stands at the forefront of innovation as an esteemed technology pioneer. We seamlessly integrate research and development, production, sales, and service to deliver comprehensive power system solutions that are a cut above the rest. Our commitment is to deliver unparalleled, high-quality holistic power system solutions to an ever-growing global clientele spanning various industries. Our cutting-edge creations - including self-developed unmanned boats, rescue vessels, autonomous patrol crafts, hydrological survey boats, and state-of-the-art electric surfboards - have garnered accolades and trust from clients and markets alike. With a keen focus on pioneering advancements, our elite power system technical team delves deep into the frontiers of brushless DC motor technology. We take pride in our independent development and production of a diverse array of high-performance motors. Equipped with advanced manufacturing and testing apparatus, we boast mature processes and a wealth of manufacturing expertise. Our stellar technical and management teams ensure excellence with every product. Exported globally, our products are met with unwavering recognition and trust from our esteemed clientele and the market.
We offer tailored Original Equipment Manufacturer (OEM) and Original Design Manufacturer (ODM) services, crafting bespoke R&D and manufacturing solutions that meet the unique demands and specifications of our clients, catering to their diverse array of needs with precision.
Resolving our clients' challenges is not just our commitment; it's our unyielding promise and mission.
Product Parameters

Size	175*68*61cm
Speed	28mph/45kpm/24kn
Weight	50kg 75kg(batteries include)
Endurance time	60-85min
Engin Power	2*6KW
Propulsion	Double jet propulsion (V-jet propulsion)
Battery	35A/1.512kwh*2
ESC	36*22*6.5cm 5connectors
Handles	1 front handle 1 back handle (Intergrated into the hull)
Remote Range	600m Use a grip-type remote control 1.5km Use a range-extender remote control

Configuration List

No.	Name	QTY
1	Unmanned Ship	1
2	Tow Rope&Carabiner	1
3	Tolley	1
4	Trolley Strop&Caraniner	1
5	Antenna(4*2.4G/2*915MHz)	6
6	Bateery	2
7	Battery Charger	2
8	Battery Holder	2
9	Battery Connector Collar&Dust Cover	2
10	Rmote Control	1
11	Remote Control Charger&USB Cade	1
12	Wrist Strap	1
13	Connector Grease	1
14	User Guide&Manufacturer	1
15	Certificate of Origin	1

Specification	200*80*40m
Displacement	75kg
Total Weight	84kg
Maximum Thrust	80kg
Remote Control Method	Multiple Remote Control Methods
Top Speed	40km/h
Battery Capacity	1920Wh*2
Remote Control Distance	20km
Maximun Sailing Time	2h

Configuration List

No.	Name	QTY
1	Unmanned Ship Platform	1
2	Battery Pack	1
3	Battery Charger	1
4	Remote Control	1
5	Broadcasting System	optional
6	Sonar System	optional
7	Hydrological System	optional
8	Image Transmission System	optional
9	Radar System	optional
10	Surveying and Mapping System	optional
11	Alarm System	optional

ESCTo amplify the player's thrilling experience and guarantee safety during every ride, we've intricately integrated multiple layers of protection within our state-of-the-art electronic controller:
High-Temperature Protection: Upon reaching a critical temperature threshold, our system intelligently moderates speed to safeguard the equipment, ensuring a seamless and secure adventure.
Over-Current Protection: A robust protector of both the battery and motor's integrity, maintaining uncompromised safety at all times.
Motor Stall Protection: In scenarios of propeller stalling due to overload, obstruction, or unforeseen elements, our stall protection steps in decisively to avert potential equipment damage and uphold safety.
Signal Loss Protection: In case of remote signal disruption, our electronic controller activates immediate protective maneuvers to ensure the utmost safety of your ride.
Return Trip Protection: Strategically designed to conserve enough power for a safe return to the initial launch point, even when the battery nears depletion.

Voltage	Connector	Cooling Method	Waterproof Rating
48V	5	Water Cooling	IP68

Smart Battery 25A 35A
This compact, easily swappable Smart Battery ensures uninterrupted use and ease of operation.
With rapid charging capabilities and clear power consumption indicators, it features an advanced Battery Management System (BMS) that provides multi-layered protection for enhanced operational safety.
*25A Battery:
The 25A model, an affordable powerhouse for daily aquatic adventures, offers the perfect synergy of weight, endurance, and performance. Enjoy up to 60 minutes of waterborne escapades.
*35A Battery:
Designed for those who crave prolonged aquatic experiences, the 35A battery offers unmatched longevity, supporting up to 90 minutes of uninterrupted adventure on the waves.

Capacity	Weight	Volume
25A/1080Wh	10.2kg	39*34*89cm
35A/1512Wh	12.4kg	39*34*89cm

*Note: Endurance may fluctuate based on variables like speed and load capacity during operation.Remote Control
Effortless and Secure Handheld Remote Control
Engineered for ease, our intuitive design incorporates a robust waterproof casing along with ten speed levels and a joystick for precise control. Dual safety mechanisms-safety trigger and automatic disconnection-halt operations if the remote contacts water.
This cutting-edge control method allows users to seamlessly navigate using a compact handheld remote, while shore-based operators can employ an extended-range remote for broader command of the unmanned platform.
With the extended-range remote, users gain access to advanced features such as GPS positioning, safety perimeter setup, and real-time video transmission, providing shore-based personnel with comprehensive, real-time insights via the ground station display.Propulsion System JET
Harnessing our patented V-shaped jet system, this unmanned marvel achieves groundbreaking performance and unrivaled dexterity. Its single inlet, dual jet design allows it to master diverse aquatic terrains-from serene lakes to roaring rivers-with the finesse of a dancer executing pirouettes on water, ensuring precision and elegance at every turn.
This exceptional propulsion system is a true marvel, a bold testament to unparalleled speed and power, perfectly capturing the fusion of groundbreaking technology and profound wisdom. Its formidable dynamics empower the unmanned boat to soar at an impressive top speed of 24 knots (approximately 45 kilometers per hour). With this remarkable capability, it can swiftly navigate its way to designated locations, whether for critical emergency rescues, meticulous environmental monitoring, or pioneering scientific research explorations. This significantly boosts operational efficiency and drastically reduces response times, setting new standards for performance.
Turning our attention to the cooling system, we have ingeniously designed an advanced self-water-aspirating cooling mechanism. This innovative feature ensures that both the motor and controller operate consistently in their optimal conditions, thereby not only extending the lifespan of the unmanned boat but also elevating the overall reliability and durability of the product. With this cutting-edge system, you can trust that our unmanned boat will deliver unmatched performance and steadfast dependability.

Power	Max RPM	Top Tensile Force	Top Speed
6000W*2	15000RPM	80kg	28mph/45kpm/24kn

*Please note: The speed may vary depending on factors such as battery capacity during use, platform load, and prevailing water conditions.Exhibition
Testing department
FAQ
Q1:Does your unmanned ship support customization?
A1: Yes, we support customization of colors, dimensions, battery capacity, model, etc., to meet your needs as much as possible.
Q2:Could you send me a price list?
A2: Since we have unmanned boats in stock and offer customization services, any changes in the customized parameters, including quantity, will affect the price. If you need a price list, you can contact me and let me know your requirements. We will then provide you with one.
Q3:Is there a MOQ for your eTow?
A3: There is no minimum order quantity requirement for our products. However, if you plan to make large - volume purchases or request customization, we will offer you the most suitable price.
Q4:How about your delivery time?
A4: We have unmanned boats in stock. It depends on how many you need. If the quantity is small, we can deliver the goods soon. If it's a large quantity, we need to check our inventory and then give you an approximate delivery time.
Q5:In which fields can your unmanned boats be applied?
A5: Our unmanned boats can be applied in many fields. They can be equipped with a variety of facilities to meet your needs, such as water sports,water rescue, water patrol, water expulsion, hydrological monitoring, and so on.
Q6:What's your warranty terms?
A6: One year.

---
