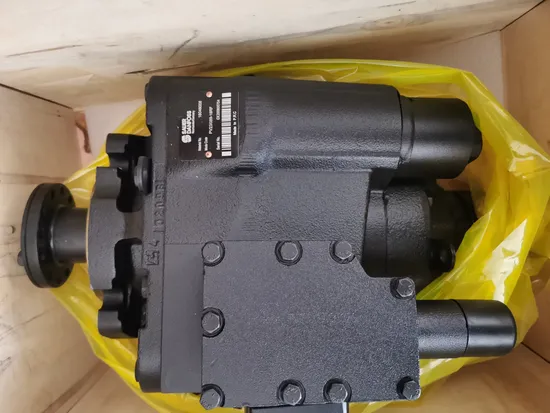

Concrete Mixer Truck PV090 Hydraulic Piston Pump, PV22/PV23/PV110/PV090/PV089 for Concrete Mixer Truck Piston Pumps Exporter

Product Description

Concrete Mixer Truck PV090 Hydraulic Piston Pump, PV22/PV23/PV110/PV090/PV089 for Concrete Mixer Truck Piston Pumps Exporter
Hydraulic Piston Pump, Mixer Truck Hydraulic Pump PV23 for Concrete Mixer Truck Product Description

Series 20 Size: 20, 21, 22, 23, 24, 25, 26, 27 Nominal pressure 210 bars, Maximum pressure 350 bars. The Sauer PV axial piston variable displacement pumps, Series 20, are of swash plate construction with variable flow capability suitable for hydrostatic transmissions with closed circuit. The flow rate is proportional to the pumps driven speed displacement, which, in turn, is determined by the swash plate angle. The latter is infinitely adjustable between zero and maximum displacement. Flow direction is reserved by titling the swash plate to the opposite side of the neutral or zero displacement position. These units and parts are fit, form and function replacements for Sauer-Sundstrand series 20 components. - Suitable for a variety of applications - Multiple displacements and options available - 8 different frame sizes - Engineered to provide a long service life and reliability - Fixed displacement motor can be operated in either direction of rotation - Multiple drive shaft options and control options - Heavy duty bearings and shafts - Easily serviceable - Replacement parts also available - Direct replacements for Sauer-Sundstrand
P7300 P3301 P4300 P5300 , Concrete Transport Mixer Truck transmissions for transport gear reducer, Compact power packs from for the world of concrete The experience of more than 300,000 mixer gearboxes in the rough and tough concrete mixer market, led to their newest gearbox development, the ECOMIX II family. With the CML-10 and CML-12 and CML-16 designed a new gearbox range, which fulfills with the revolutionary design all the requests, OEM and enduser expect from a modern drive.
Weight saving, low noise, increased life time, easier maintenance and assembly and eco friendliness are all features of the new range.
In addition to the new range, continues to offer the well proven P-Series which has been continuously upgraded in design and specifications.
Details regarding the choice of hydraulic fluid:
The correct choice of hydraulic fluid requires knowledge of the operating temperature in relation to the ambient te
P3301 reducer / gearboxPMB 7.1R 130 reducer / gearboxPMB7.5, PMP7.5sp reducer / gearboxCML10 reducer / gearboxCML16 reducer / gearboxPLM-9 reducer / gearboxPLM-7 reducer / gearboxP3301 reducer / gearboxP4300 reducer / gearboxP7300 reducer / gearboxP7500 reducer / gearboxPMP 6.0 reducer / gearbox

Size	Dimension	Sauer-DANFOSS PV pump
		PV20	PV21	PV22	PV23	PV24	PV25	PV26	PV27
Max. displacement	cm3	33,3	51,6	69,8	89,0	118,7	165,8	227,3	333,7
Max. flow	dm3min-1	119,5	159,9	196,1	230,5	278,9	348,1	429,59	557,2
		4	6	4	1	4	8		8
Charge pump	cm3	12,3	12,3	18,03	18,03	18,8	32,8	32,8	65,5
Max. pressure	MPa	35
Nominal pressure	MPa	21
Max. pressure of control	MPa	3,5
Charge pressure	MPa	0,8 - 2,0
Max. pressure in case	MPa	0,25 continuous 0,5 intermittent
Maximum speed +	min-1	3590	3100	2810	2590	2350	2100	1890	1670
Minimum speed	min-1	500
Nominal speed	min-1	1500
Kinematic viscosity range of working fluid - starting - operating - optimum		1000 12 - 600 25 - 35
	mm2s-1
Kind of working fluid		mineral oil
Operating temperature	oC	- 40 to + 50
Max. temperature of working fluid in tank	oC	80
Purity of working fluid	µm	10
Direction of shaft rotation		clockwise or counter clockwise
Maximum swash plate angle	o	± 18 o
Weight	kg	45	55	63	78	124	164	212	270

Certifications

PMB6R10 reducer / gearboxPMB7B129 reducer / gearboxPMB6.5R120 reducer / gearboxPMB6spR129 reducer / gearboxPMB6SP reducer / gearboxPMB6.5SP reducer / gearboxPMB7aspR120 reducer / gearboxPMB7.1R120 reducer / gearboxPMB7R130 reducer / gearboxPMB7.1R130 reducer / gearbox575L reducer / gearbox577L reducer / gearbox580L reducer / gearboxTM51.2 reducer / gearboxTM61.2 reducer / gearboxTM71.2 reducer / gearboxP58 reducer / gearboxP68 reducer / gearboxP70S reducer / gearboxP75S reducer / gearboxP75R reducer / gearboxP80 reducer / gearboxP90S reducer / gearboxP90 reducer / gearboxDD33-MF reducer / gearboxPK86-BF reducer / gearboxRC100 reducer / gearboxRC102 reducer / gearbox5423-518 pump5433-138 motorEaton 5433 pumpEaton 5433 motor4623-552 pump EATON 4623 pumpEATON 4623 motor6423-279 pumpA4VTG090HW100/33MRNC4C92F0000AS-0 hydraulic piston pumpA4VTG90HW/32R-NLD10F001S hydraulic piston pumpA4VTG71 hydraulic piston pumpA2FM63/A2FM90/61W Piston Motor90R-100-35-20 hydraulic piston pumpPV089MHR/20DBC13C00 piston motorPV23 pumpPV23 motorPV22 pumpPV22 motorA2FE160/61W-VZL107-SK piston motorA2FE80/61W-VAL181-K Piston MotorPMHP90 pump PMH M90 motor A11VO40DRG/10R-NPC12N00 PISTON pumpA11VLO190LRDU2/11R-NZD12K02P-S PISTON pumpA11VLO190LRDU2+A11VLO130LRDU2 PISTON pumpA11VLO190LRDU2/11+A10VO28DR/31-K PISTON pumpA11VLO190LRDU2/11L-NZD12K02P-S PISTON pumpA11VLO260LRDU2/11R+A10VO28DR/31R+AZPF-11 PISTON pumpA11VLO260LRDU2/11R-NZD12K67P-S PISTON pumpA11VLO260LRDU2/11R-NZD12K02P-S PISTON pumpA11VLO260LRDH2/11R-NZD12K02 PISTON pumpA10VO28DR/31R-VSC12K01 PISTON pumpA4VG180HD1MT1/32R-NSF02F021-S PISTON pumpA7VO55LRDS/63L-NZB01-S PISTON pumpA2FO32/61L-VAB05 PISTON pumpHAA2FM90/61WHA4VTG090HW/33RA4VG125HDMT1/32R-NSF02F021-S Piston pump Detailed Photos
Product Parameters

Installation Instructions

---
