Hydraulic Z3080 High Accuracy Radial Drilling Machine for Metal Price

Product Description

Product Description

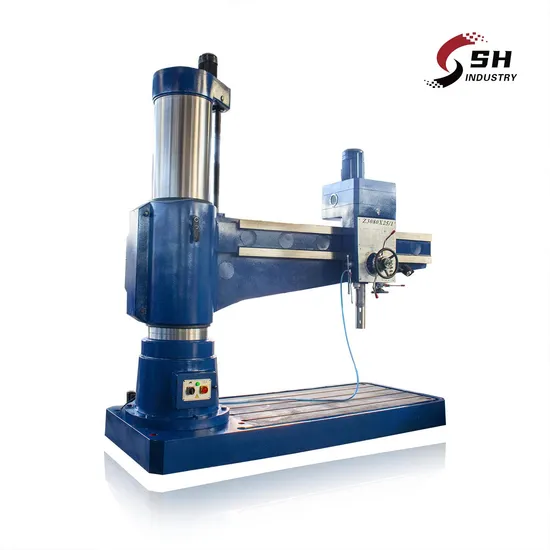

Hydraulic Z3080 High Accuracy Radial Drilling Machine for Metal Price
Product Parameters

Main technical parameters	specifications	Units	Z3080*20A	Z3080*25A
	Max. drilling diameter	mm	80	80
	Distance from spindle nose to table surface	mm	350-1570	350-1570
	Distance between spindle axis and column surface	mm	510-2000	480-2500
	Spindle travel	mm	400	400
	Spindle taper	MT	6	6
	Spindle speeds range	(r.p.m)	16-1600	16-1600
	Spindle speed step		16	16
	Spindle feeding range	(r.p.m)	0.04-3.20	0.04-3.20
	Spindle feeding step		16	16
	Rocker rotary angle		+/-90°	+/-90°
	Main motor power	kw	7.5	7.5
	Movement motor power	kw	1.5	1.5
	N/W	kg	7000	9500
	Overall dimensions(L*W*H)	mm	2980*1250*3300	3500*1450*3300

Features:
With wide range of speed, with manual-power feed. The feed of machines are very easily engaged and disengaged at any time.
The radial arm can rotated and can tilted± 45° , it reliable and easy job can be done.
Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
The machine with small appearance and much function, the machine are widely used for drilling, counter boring, reaming, tapping etc
Standard accessories:
Drill chuck Φ16mm, taper shank sleeve, taper shank post, under the knife iron, box table
Special attachment:
Rack, angle pliers, eye shield
Realistic photos
Detailed Photos
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
