Industrial 500c 800c 1000c Mica Fiberglass High Temperature Heat Resistant Wire

Product Description

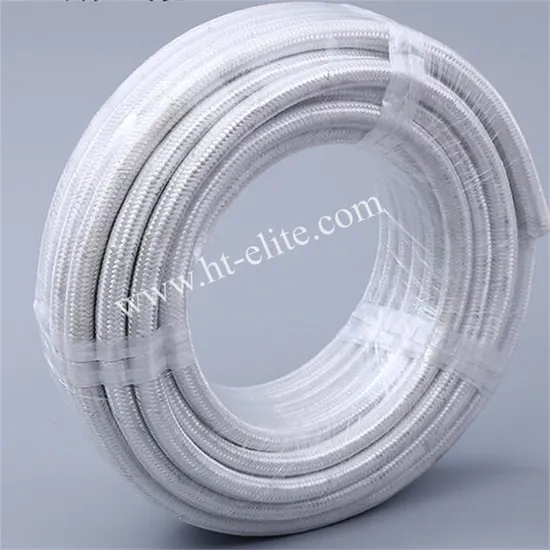

Industrial Electric Mica Fiberglass High Temperature Wire
Product Description 1. Introduction:
Name: Mica Fiberglass High Temperature Wire Cable
Size: 26AWG~4/0 AWG

1	Flexible nickel core
2	Fiberglass braid with high temperature finish
3	Mica tape
4	Fiberglass braid silicone impregnate with high temperature finish

2. Application
Used for internal wiring of
household ovens,
appliances,
lighting fixtures
and electronic equipment
as high-temperature lead wire.

2. Parameter:

SizeAWG	ConductorStructure	Insulation Thickness(mm)	Braid Thickness(mm)	Diameter(mm)
26	7/0.16	≥0.64	≥0.18	2.0±0.2
24	7/0.2			2.3±0.2
22	7/0.254			2.4±0.2
20	10/0.254			2.6±0.2
18	16/0.254			2.8±0.2
16	26/0.254			3.2±0.2
14	41/0.254			3.6±0.2
12	65/0.254			4.2±0.2
10	103/0.254	≥0.76	≥0.38	5.2±0.2
8	163/0.254			6.6±0.2
6	266/0.254			7.1±0.2
4	420/0.254			8.3±0.2

3.Technology:

Main technical parameters
Conductor Resistance	0.5 Ω /M/3m Min
Dielectric Strength	AC1000V,Leakage Currence less than 0.25MA(3m)
Insulation Resistance	DC 500V 100MΩ /3M MIN
Flex test	300G,90° degree each side,6cycles/min,morn than 3000 cycles
Adhesion Test	Insulation adhesion during 1.15-2.5 LBS,Jack adhesion during 2-8LBS
Relative humidity	≤80%
Atmospheric pressure	700hPa~1060hPa

4. Advantages:
Ratings: -60°C~+450°C, 600V
Conductors: Nickel copper, Nickel
Insulation: Mica tape, fiberglass braid
Jacket: Fiberglass braid with high temperature finish
Unique insulation system offers outstanding heat-aged flexibility for longer service life.
Excellent cutting and stripping characteristics, making it ideal for high volume manufacturing and assembly.
Provides dimensional consistency and uniformity.
Suitable for applications to -60°C
Resists braid pushback.
5. Packing Methods Packages:

---
