Small CNC Gang Lathe Machine and Milling Machine for Metal Cutting

Product Description

Product Description

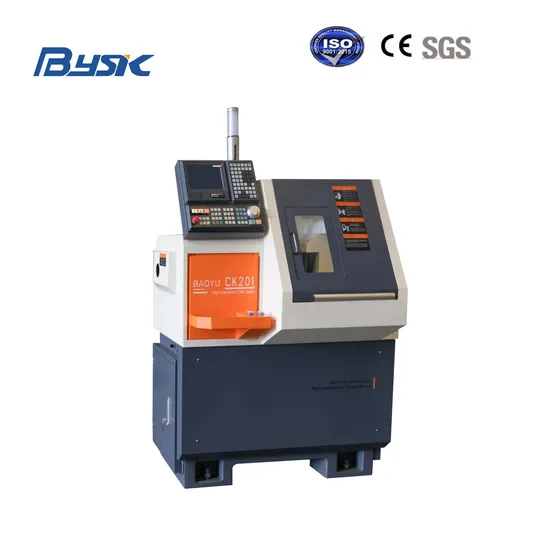

BYSK Small CNC Gang Lathe Machine And Milling Machine For Metal Cutting
-CK201 small high precision gang type cnc lathe with Y-axis machining
Features:
1. CK201 is a practical and economical lathe, which is simple and practical, easy to operate and has high processing accuracy.
2. It suitable for process complex parts, such as straight lines, tapers, arcs, and threads.
It is especially suitable for single-piece and mass-produced products with complex parts, such as various instruments, meters, electronic products, micro-components, connectors, glasses, clocks, and lighters. and various hardware accessories, etc.
3. The programming language adopts ISO code, that meets international standards and is optimized according to the specific situation.
Detailed Photos
·Height-adjustable tool holder for easy tool adjustment and turning
·The tool holder plate equpped with Y-axis and also equipped with 3 side power heads.
·Can achieve the turning and milling composite machining
·It can be equipped with an automatic feeder and can be widely adapted to automation and production line production.
·Reasonable layout, compact appearance and small footprint.
·Economical, easy-to-operate, compact CNC lathe
CK201 Processing Samples
Some Suggestions
--Max profile diameter within 7mm, suggest model B07,CK1107. B07 is with dual spindle type, CK1107 is single spindle type.
--Max profile diameter within 13mm, suggest our model B13,CK1113.
--CK0620A2 particularly suitable for processing of complex-shaped parts such as linear/taper/arc threads, Configurated with center frame can process slender shaft parts.
--CK0625A is suitable processing of various precision parts such as instruments/meters/electronic connectors/optics/automotive and motorcycle parts/small hardware.
--CK32A3 is multi-functional Turning&Milling CNC Lathe, CK32A3-B is with dual spindle based on CK32A3.
--X42 is slant-bed cnc lathe, suitable for processing of shaft/disc parts with complex/variety of sizes/high precision request.
--More details pls contact us, or send your drawings of profiles, we will give you professional recommendation.
Product Parameters
BYSK Small CNC Gang Lathe Machine And Milling Machine For Metal Cutting
Technical Parameter

Power	Rated Voltage	Three Phase Ac 380V
	Rated Frequency	50HZ
	Total Input Power	4kW
CNC System	BYSK	YZ190
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Z Axis Pulse Equivalent	0.001mm
	Max Programming Size	±9999.999
	Cutting Speed	1--4000mm/min
	X Axis Rapid Feed Speed	22000mm/min
	Z Axis Rapid Feed Speed	22000mm/min
Main Spindle	Max Bar Diameter	Φ20mm
	Main Spindle Through-hole Diameter	Φ21mm
	Max Rotate Diameter	Φ200mm
	The height from main spindle center to ground	1000mm
	Main Spindle Rotate Speed	0-5000r/min
	Main Spindle Motor Power	2kW
Stroke	X Axis Stroke	500mm(Diameter)
	Z Axis Stroke	200mm
	X Axis Servo Motor Power	0.75kW
	Z Axis Servo Motor Power	0.75kW
	Guideway Form	Linear Guide Rail

Gang Tooling System	T notch Gang Arrangement	10 pcs
	16*16 Square Cutter	2 pcs
	10*10 Square Cutter	4 pcs
	8*8 Square Cutter	2 pcs
	Φ16 Hole Cutter	2 pcs
Cooling System	Cutting Oil Motor Power	0.12kW
	Cooling Box Capacity	45L
Lubrication System	Motor Power	40W
	Capacity	2L
Pneumatic System	Input Compressed Air Pressure	0.4--0.6Mpa
Machine Size	L*W*H	1150*1220*1750
	Weight	800kg
Optional Configuration
Side/Front/Vertical Multipurpose Live Tool
Collet Specification	ER11
Motor Power	400W
Rotate Speed	4000r/min
Y Axis Side Live Tool	Collet ER16	3 pcs
	Power	0.75kW
	Rotate Speed	4000r/min

CK201 Configurations
Item	Model/Specification	Origins
CNC System	YZ190	Baoyu BYSK
Main Spindle Motor	2kW Absolute Value Servo Motor	Inovance+Lines
X Axis Motor	0.75kW Absolute Value Servo Motor	Inovance+Lines
Z Axis Motor	0.75kW Absolute Value Servo Motor	Inovance+Lines
X Axis Screw Rod	438*2008	Taiwan Joint Venture
Z Axis Screw Rod	400*2006	Taiwan Joint Venture
X Axis Guide Rail	HGH20	HIWIN/PMI
Z Axis Guide Rail	HGH20	HIWIN/PMI

Company Profile
Packaging & Shipping
FAQ
1. Do you accept OEM/ODM?
Reply: Yes. OEM/ODM are welcomed.
2.How many years of production experience does your company have?
R: Over 10 years,We have several professional and experienced technical instructors to guide you for after-sales.
3. Is it possible to deliver quickly (or how many days is the delivery guaranteed, the delivery deadline)?
R: Yes, in common condition , lead time about 30- 45 work days
4.What are the after-sales services?
R: We have professional technical team, can solve your problem 24 hours online.
5. Does this product accept customized services? What specific aspects can be customized? (Such as color, shape, size, etc.;)
R: Yes , customized service is workable , like print your company logo etc.
6. Do you accept small quantity orders (or what is the minimum order quantity, etc.)?
R: Yes, 1 set machine also be available.
7. What are the characteristics of the material of this product?
R: High quality gray cast iron with CE Certificate.
8. What are the unique functions and features of this product?
R: Comparable to European quality Swiss type cnc lathe machine, With high cost-effective, and obtained multiple domestic certifications in China, in addition, As an independent production enterprisewe have ourself technical research team.
9. What are the application areas or uses of this product?
R: Widely appled in Communication Equipments,Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories.
10. Is it in stock? Can it be wholesaled?
R: Some models have, need confirm
11. Are there any second-hand products for sale?
R: No,sorry
12. What cnc system you use?
R: Our cnc operate system is the BYSK190, this is our company's own brand, and has always been popular in the market because of its easy operation and comprehensive functions, in addition, LNC system also be optional.
13. Are you factory ? and where is your factory located ? How can i have a visit there ?
R: Yes it is. Our company is located at Jianshe Road No.1, Economical District, Guangde,Xuancheng City,Anhui Pronvince. You are warmly welcomed to visit us.

---
