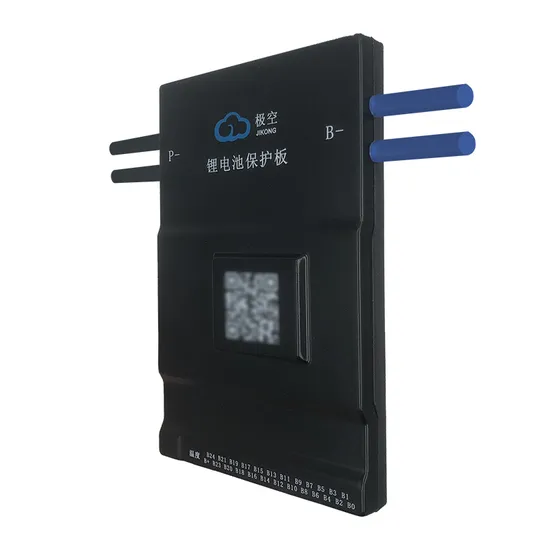

24 Series 350A Active Balancing Protection Board for Electric Vehicles, Electric Vehicle Ternary Lithium Battery 72V Lithium Iron Phosphate Titanate BMS

Product Description

Installation Instructions The wiring sequence of the lithium battery protection plate: Note that the wiring of different protection plate manufacturers is not common. Please ensure that the wiring is correct. 1, wiring front ensure that the wiring is not inserted into the protection plate. 2, the line from the black thin line connected with "B-", the second root (next to the black thin line of the red thin
line) connected with the first string of battery positive B1, followed by analogy, finally connected to the total positive battery red thin line. 3, after connecting the row line, measure the voltage of the two adjacent metal terminals on the back of the row
and plug the three mixture cell should be 3.0V-4.2V, lithium iron should be 2.0V-3.6V, lithium titanate should be 1.6V-2.75V. 4.Insert the protection plate socket after confirming the wiring sequence and voltage. 5, the protection plate "B-"(blue thick line) is connected to the total negative of the battery,"P-" (black thick line) is connected to the charging negative and discharge
negative.

Specifications	Models
		JK-BD6A17S4P	JK-BD6A17S6P JK-BD6A20S6P JK-BD6A24S6P	JK-BD6A17S8PJK-BD6A20S8P JK-BD6A24S8P	JK-B1A8S20P JK-B2A8S20P
Number of battery strings	8-17	8-24	8-24	8
Equalization	Active equalization
Balance current	0.6A					1A 2A
Main circuit resistance	1.3 mΩ	1.3 mΩ	0.3 mΩ	0.3 mΩ
Continuous discharge current	40A	60A	80A	200A
Maximum discharge current	60A	100A	150A	350A
Overcurrent Protection (adjustable)	1060 A	10100 A	10-150A	10-350A
Other interfaces (custom made)	RS485	RS485 CAN	RS485 CAN	RS485 CAN
Product size (shape size)	110.4mm*73mm*17.6mm	136mm*83mm*17.6mm	136mm*83mm*17.6mm	174.77mm*107.26mm*17.6mm
Package size	203mm*145mm*41mm	203mm*145mm*41mm	203mm*145mm*41mm	203mm*145mm*41mm
Packaging box size 20 pieces per box	425mm*300mm*225mm	425mm*300mm*225mm	425mm*300mm*225mm	425mm*300mm*225mm
Charge and discharge interface 1 portCell voltage range 1-5v Voltage acquisition accuracy ±5 mV Overcharge protection voltage 1.24.35 V adjustable Overcharge release voltage 1.24.35 V adjustable Overcurrent release time 2120S adjustable Over discharge protection voltage 1.24.35 V adjustable Over discharge recovery voltage 1.24.35 V adjustable Number of temperature detections 3 Temperature protection YES Short circuit protection YES Coulomb counter: YES Bluetooth function: Support Android, IOS system GPS (optional) Support (select one of RS485 and GPS)
