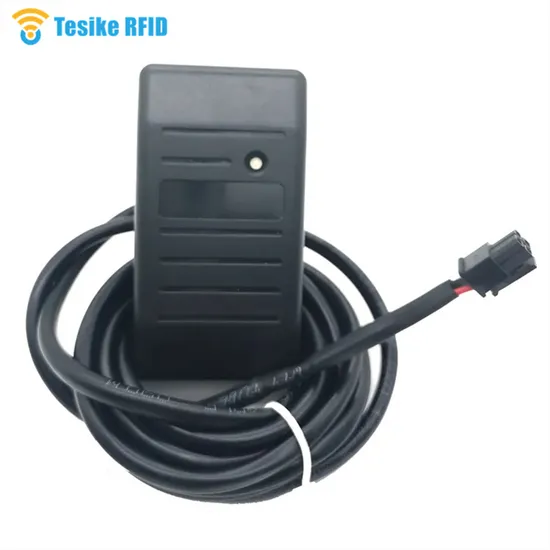

125kHz 13.56MHz RFID One Wire Reader for Tracking System

Product Description

125Khz 13.56Mhz RFID one wire reader for tracking system ODM/OEM
Free Sample Test before you place an order to us !
Instruction:
TSK65X0/TSK85X0 is a LF/HF reader that connect to PC and related devices via wg26/34, RS232, RS485 interface with read only and
read write options.
Feature:
Supports card : 125Khz/3.56Mhz optional
Support wg26/34, RS232, RS485 communication
A buzzer and a LED indicator light


Parameter:

Module NO.	TSK8560
Standard	ISO/IEC 14443-A
Supporting Card	Mifare®S50/S70/ICODE SLI
Interface	wg26/34, RS232, RS485,one wire
Power Supply	External 9V(default), optional 5V, 9-30V
Read Distance	0-8cm (Depending on label size and antenna technology)
Baud Rate	9600-115200bit/s(Configurable , default 9600)
Operating Temperature	-10ºC-50ºC
Housing Material	ABS
Dimension	optional

Packing information:

Packing
Quantity	Dimension(cm)	Weight(kg)
100pcs	55*40*33cm	7.5-10kg

Model Description:

TSK8560-W	WG26
TSK8560-G	WG34
TSK8560-S	RS232
TSK8560-R	RS485
TSK8560-T	TTL

RFID 1 wire reader for GPS tracking system One wire reader for 125Khz

Frequency	125KHz
Support card	EM4200,TK4100 and compatible card
Interface	One wire/iButton
Read Distance	> 5cm(Card reading distance depends on card packaging and surroundings)
Indicator	A LED light,A buzzer
Power Supply	DC +9V ~ +12V(±5%)
Current	<60mA
Baud Rate	9600
Storage Temperature	-20ºC~70ºC
Operating Temperature	-10ºC~50ºC
Dimension	80*43*13mm
Humidity	0 ~ 95%

One wire reader for 13.56Mhz

Instruction:
TSK8520-1W is TESIKE developed 13.56MHz wall-mounted card reader with one wire interface .

All 1-Wire devices, including iButton devices, contain an 8-byte unique registration number.
The computation begins with the MSB of the 64-bit, This 1-Wire Data consists of an 8-bit CRC,
a unique 48-bit serial number and an 8- bit family code.The family code is fixed 0x01.

Frequency	13.56MHz
Support card	ISO14443A mifare 1K and compatible card,
Interface	1-Wire Bus
Read Distance	> 5cm(Card reading distance depends on card packaging and surroundings)
Indicator	A LED light,A buzzer
Power Supply	DC +9V ~ +12V(±5%)
Current	<60mA
Baud Rate	9600
Storage Temperature	-20ºC~70ºC
Operating Temperature	-10ºC~50ºC
Dimension	80*43*13mm
Humidity	0 ~ 95%

Application:
Piles
Smart wine cabinet
printer/duplicator
Attendance machine
Advertising tablet PC
Medical Electronic Equipment
Identification card scanner
Smart game equipment
Hand-held intelligent terminal
POS consumption endpoint

---
