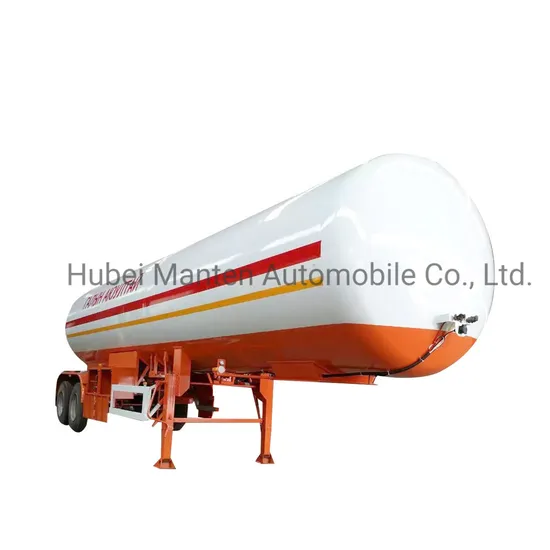

20tons Methane Propane Butane Gas LPG Tank Trailer for Mongolia

Product Description

HUEBEI MANTEN AUTOMOBILE CO.,LTD
*ASME standard available*
*100% new condition by manufacturer direct sale*
*100% quality guaranteed*

I. Details of 20Tons Methane Propane Butane Gas LPG Tank Trailer for Mongolia
LPG semi-trailer (LPG semi trailer) is also known as liquefied gas semi-trailer, liquefied gas tank semi-trailer, liquefied gas tank semi-trailer, liquefied petroleum gas transport semi-trailer, liquefied petroleum gas semi-trailer, LPG tanker semi trailer. It is a special transport semi-trailer for transporting liquefied gases such as propane, propylene, dimethyl ether, liquid ammonia, methylamine and acetaldehyde.
1) LPG Transport Tanker Trailer is used for transporting liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
2) Manufacturing standards of LPG Transport Tanker Trailer : GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
3) Optional accessories of LPG Transport Tanker Trailer:ROCHESTER level gauge,flow meter,sunshelter,lpg pump,lpg dispenser machine,filling hose
4) Available tanker trailer capacity of LPG Transport Tanker Trailer: 18mt,18t,20mt,20tons,22mt,22tons,25mt,25tons,30mt,30tons
Features:
1, Axle: 3 pieces, BPW 13ton. FUWA or L1 brand is optional.
2, Suspension: German design heavy mechanical suspension or air bag.
3, LPG tanker: Heavy duty loading capacity, 40500 liters, 49600 liters, 56000L, 59600L.
4, Safety Control System: Safety Valve, Pressure Meter, Cut-off Valve and etc.
Manufacturer: HUBEI MANTEN AUTOMOBILE CO.,LTD
» II. LPG Filling Station Specification :
Similar keys: portable LPG gas tank, portable lpg station, lpg cylinder filling station, portable lpg filling kit, propane filling station, etc.

Tanker Essential Information
Volume of Tank (cbm)	40-62cbm
Overall Dimensions(L*W*H)(mm)	11324*2500*3730
Tank Dimensions(Inner Diameter*thickness*Length)	2200*12*11044
Estimated Tare Weight (kg)	13415
Payload(kg)	17010
Total Weight(kg)	30425
Wheelbase(mm)	6720+1320
Shell of Tanker
Products	Liquefied Petroleum Gas (propane)
Fluid Property	Flammable
Design Temperature(ºC)	50ºC
Design Pressure(MPa)	1.61
Corrosion Allowance(mm)	1
Weld Joint Factor	1
Major Materials of Bearing Pressure	Tanker body:Q345,12mm,
	End plate:Q345R,12mm
	Main beam:16Mn
Detection
Heat Treatment	Overall treatment in a furnace,600ºC to 640 ºC
Flaw Detection	100% Flaw detection
Test Pressure(MPa)	1.61
Hydraulic Test(MPa)	2.1
Magnaflux Inspection	Aim at welding place that flaw detection can not cover
Manhole (As Customer's Requirement)
Quantity	1 piece ;on top
Size	DN450
Safety Valve(As Customer's Requirement)
Quantity	2
Location	On the top of tanker
Size	DN80
Level Gauge
Type	Manuel Switch type
Location	At the rear of the end dish
Running System
Axles	2*13T BPW
Tire	12R22.5 Tubeless tire ,8 with one spare tire
Landing leg	JOST
King Pin	#50 or #90
Control System
Emergency Cut-off Valves	2 or 3
Ball Valve	4 or 6
Liquid Gauge	1
Pressure Indicating Thermometer	1
Pressure Gage	1

» III. Product Detailes:
» IV. LPG SERIES
» V. Packaging & Shipping:
Thick wax polished on products before shipping to protect. Use container, RORO/bulk ship or others as your requirement. We provide transportation insurance to guarantee the new and great condition of products for customers.
» VI. ABOUT US HUBEI MANTEN AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc. Main info as below:
(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.
Welcome to contact with us for more info. We will offer you the best truck as we can .

---
