US$160.00-330.00
|
1 Piece
(MOQ)
|
Basic Info.
Number of Charging Interfaces
One Pile with One Charge
Location
Indoor and out Door
Installation
Wall Mounted
Charge Method
Normal Charge
After-Sales Service
2 Years Warranty
Certification
CE, TUV, Ukca, RoHS, ISO
Rated Output Current
7kw:16A; 11/22kw:32A
Standard Compliance
IEC 61851-1, IEC 61851-21-2
Charging Connector
5m Tethered IEC Type 2 Lead
Operating Temperature
-30degree to 50degree
Operating Humidity
up to Rh 95% Non-Condensing
User Interface
Digital Screen
Data Connection
Back-End Service Via Ocpp / Home APP
Rated Input Voltage
7kw: 230VAC; 11/22kw: 400VAC
Network Gateway
Bluetooth / WiFi/ 4G
Housing Material
PC with Anti-UV Treatment
Specification
87 x 190 x330( DxWxH )
Production Capacity
5000/Month
Packaging & Delivery
Package Size
48.00cm * 32.00cm * 21.00cm
Package Gross Weight
5.000kg
Product Description
| Product Parameters |

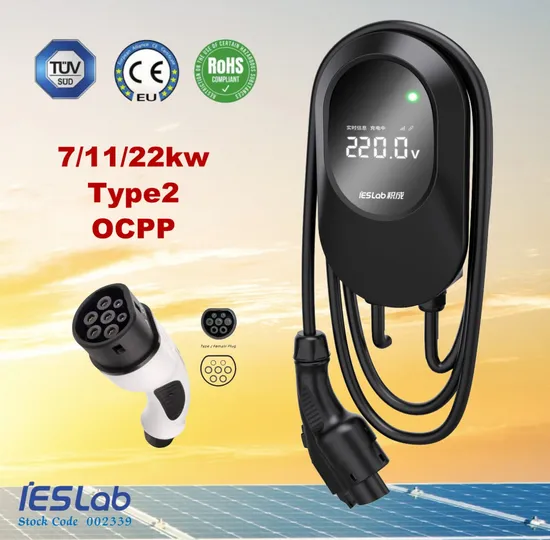

| Product name | Wall-Mounted EU Standard AC Charger |
| Overall Dimensions(LWH) | 87mm x 190mm x330mm |
| Net Weight | 4.8kg |
| Housing Material | PC with Anti-UV Treatment |
| Rated Input Voltage | 7kw:230Vac ± 10%;
11/22kw:400Vac ± 10% |
| Rated Output Current | 7kw:230Vac ± 10%; 11kW/16A; 22kW/32A |
| Standard Compliance | IEC 61851-1, IEC 61851-21-2 |
| Charging Mode | Mode 3 |
| Charging Connector | 5 Meter Tethered IEC Type 2 Lead |
| Electrical Protection | UVP, OVP, RCD (DC 6mA),
SPD, Ground FaultProtection OCP,OTP,
Control Pilot Fault Protection |
| Energy Meter | On-board Device +/- 1% Accuracy |
| User Interface | Digital Screen |
| Multi Cable Entry | Bottom Side |
| Connectivity | LAN Ethernet |
| Operating Temperature | -30°C~50°C |
| Operating Humidity | Up to RH 95% Non-condensing |
| Protection rating | IP54 |
| Communication Protocol | OCPP1.6j |
| Electrical Protection | E-stop Button with Protection Cover |
| Data Connection | Back-end Service via OCPP / Home App |
| NFC Authentication | ISO / IEC 14443A / MIFARE (13.56 MHz) |
| Pedestal | Single / Back-to-Back Mounted |
Main Products
Certifications
Company Profile
Factory Tour
Fairs Events
Projects and Cases
FAQ
Q1: Can I visit your company?
A: You are highly welcomed to visit our factory at any time!
Wanna find a reliable business parterner with guaranteed quality and after-sales service in China, please do not hesitate to contact me ASAP!
Q2: Are you a factory or a trading company?
A: We are a professional manufacturer with 30 years of R&D and production experience.
Q3: Do you test all of your chargers before shipping?
A: Al major components are tested before assembly, and each charger is fully tested before being shipped.
Q4: What is the warranty?
A: We provide a two-year warranty. During this period, if there are any product quality problems, we will provide technical support and replace new parts.
Q5: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the necessary molds and fixtures.
>>
