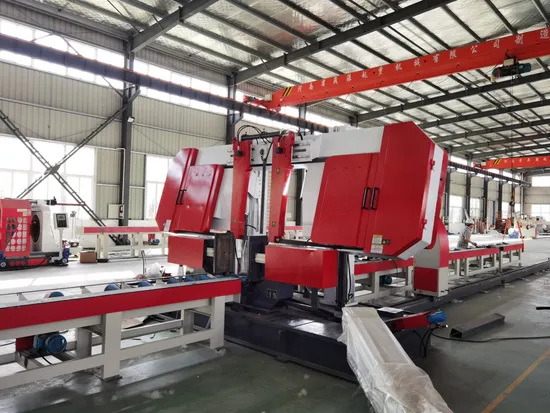

Automatic CNC Pipe Cutting Band Saw Machine

Product Description

Numerical Control Pipe Cutting Band Saw Machine (PLC)
U Model: PCBSM-16Ba/24Ba/32Ba
U Performance features
Ø On-line Performance: Good (designed as per the one line equipment of the production line)
Ø Cutting efficiency: ≤2Min /one pipe cutting (DN200 SCH40);
Ø Opening quality: Good
Ø Application Range: Used for projects with a majority of standard wall thickness & heavy wall thickness
U Technical parameters
Ø Structure: Horizontal and with double columns, made special roller
Ø Pipe diameter applicable: DN50-400 (φ60-426mm); DN50-600 (φ60-610 ); DN200-800 (φ219-813 mm); Or custom made acc to requirements
Ø Materials applicable: Carbon steel, alloy steel, stainless steel and cryogenic steel
Ø Feeding speed: Stepless speed adjustment
Ø Clamping mode: Both sides centering clamping automatically by hydraulic cylinder.
Ø Band saw tension: Tensioning & loosen automatically by hydraulic
Ø Cooling system: Built in coolant pump
Ø Speed of the band saw: 18, 42, 68 m/min; 27, 52 or 78 m/min; 15-80m/min (infinitely variable speeds);
Ø Size of the band saw: 4320*34*1.1mm; 6980X*41*1.3mm; 8880X67X1.6mm
Ø Dimension of machine: 2300*1200*1650mm; 3600*1450*2100mm; 4050X2000X2600mm
Ø Weight of machine: 1370KGS(±5%); 5000KGS (±5%); 8000KGS (±5%)
Ø Controlling System: PLC Control with touch screen (human machine interface)
Ø Self Length Measuring System Measuring Length: 0.5m or 1 m per times as per data. Input the datas of you want to cutting off PCS then to carry out it one by one.
Ø Assist Length-measuring system: A mechanical Length-measuring system could be provided if necessary so as to fix the length of the pipes as well as cutting with the supporting of the band saw conveying system. This one is more suitable for long pipe length measuring to cutting off.
Ø Conveying system: Be equipped for a roller conveying system and driven by motor, variable frequency speed control system (If necessary)
Ø Voltage: 380V/ 415V/440V/3pH-50/60Hz or as per request and pls notice.
Welcome You to visit our website cn-qspt.en.made-in-china.com or our factory in Shanghai.
Reference Photos: Company Profile
QSPT is professional pipe fabrication machines manufacture company. we provide you with pipe beveling/chamfering machine,pipe welding machine, pipe/elbow/flange fitting-up equipment, intelligent pipe warehouse and pipe fabrication line.
Qianshan has partnership with many companies, such as China Oil & Gas, China Petroleum (CNPC/PTR), China Petrochemical (SINOPEC/KSS), China Ocean/Marine/Onshore & Offshore Engineering(CNOOC/CNOEC), China Chemical Engineering (CNCEC), China Nuclear Energy (CNECC), China Thermal Power, China Hydroelectric, China Wind Power, Metallurgy(MCC), China Shipbuilding Industry Corp(CSIC/CSSC), China Aerospace(CASC/CASIC), etc. Its products have been exported in large scale to Southeast Asia, Africa, Europe, America etc.

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory based trading company
Q: How long is your delivery time?
A: Generally it is 30-40 days if the goods are in stock. or it is 60-80 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 40% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us.

Model No.	PCBSM-16Ba	PCBSM-24Ba	PCBSM-32Ba
Pipe diameter applicable	2"-16"	2"-24"	8"-32"
Speed of the band saw	18,42,68 m/min	27, 52 or 78 m/min	15-80m/min
Size of the band saw	4320*34*1.1mm	6980X*41*1.3mm	8880x67x1.6mm
Dimension of machine	2300*1200*1650mm	3600*1450*2100mm	4050x2000x2600mm
Weight of machine	1370KGS( ± 5%)	5000KGS ( ± 5%)	8000KGS ( ± 5%)
Controlling System	PLC Control with touch screen (human machine interface)	PLC Control with touch screen (human machine interface)	PLC Control with touch screen (human machine interface)
Self Length Measuring System	Measuring Length: 0.5m or 1 m per times as per data. Input the datas of you want to cutting off pcs then to carry out it one by one.	Measuring Length: 0.5m or 1 m per times as per data. Input the datas of you want to cutting off pcs then to carry out it one by one.	Measuring Length: 0.5m or 1 m per times as per data. Input the datas of you want to cutting off pcs then to carry out it one by one.

---
