Stationary Concrete Plant for Prestress Concrete Producers Forced Mixing Plant

Product Description

Concrete Batching Plant For Sale

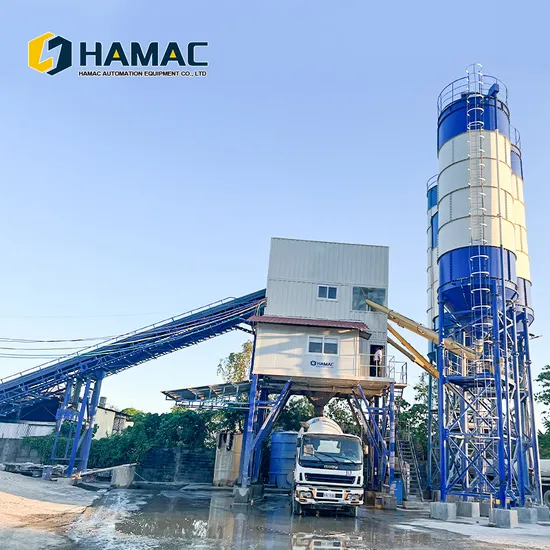

Concrete batching plant for sale is a complete production line to produce ready mixed concrete. The aggregates, sand, cement, fly ash, additive, water reducing admixtures in concrete will be weighed by the weighing system, and then are fed into the concrete mixer machine to be mixed to concrete for sale. The whole procedure is controlled by software in the computer. And then it will be transit to the working sites by concrete transit mixer truck. Sometimes it will be discharged to the concrete pump machine directly to be pumped to the building.
The following two pictures are the overall layout of two typical concrete batch plants for sale:

Belt Conveyor Type Concrete Batching Plant Skip Hoist Type Concrete Batching Plant
FAQ FOR CONCRETE BATCH PLANT FOR SALE
1. How does the concrete batching plant work?

In order to explain clearly how the concrete batch plant works, we prepare this concrete batch plant layout, please check it.
2. What are the main parts of concrete batching plant?
Normally speaking, a complete concrete batch plant include aggregate batching machine, inclined belt conveyor(hoisting bucket), concrete mixer, weighing system for cement, water and additive, pneumatic system, automatic control system, control room, cement silo and screw conveyors.
3. How many types of batching plants are there?

Normally speaking, concrete batching plant are divided into 3 different types based on different designs. Stationary concrete batching plant, mobile concrete batching plant, and another special design is dry batch concrete batching plant without central concrete mixer.

Technical data	Model
	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS120	HZS180(150)	HZS240(200)
Theoretical capacity(m³/h)	50	50	50	60	75	90	120	180(150)	240(200)
Mixer model	0.5m3	0.75m3	1.0m3	1.0m3	1.5m3	1.5m3	2.0m3	3.0m3	4.0m3
Batching system	PLD1600	PLD1600	PLD1600	PLD1600	PLD2400	PLD2400	PLD3200	PLD4800	PLD6400
Discharging height (mm)	4100	4100	4100	4100	4100	4100	4100	4100	4100
Maximum aggregates size(mm)	60(80)	60(80)	60(80)	60(80)	60(80)	60(80)	60(80)	60(80)	60(80)
automatic Cycle time(s)	72	72	72	60	72	60	60	60(72)	60(72)
Weighing Precision of Aggregate	±2%	±2%	±2%	±2%	±2%	±2%	±2%	±2%	±2%
Weighing Precision of Cement	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Weighing Precision of Water	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Weighing Precision of Additive	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%

---
