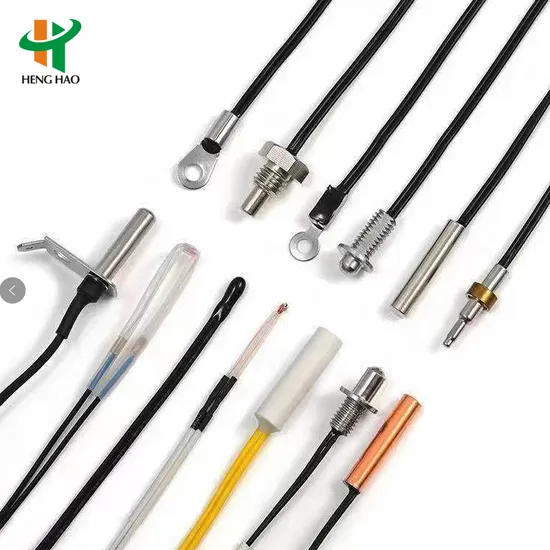

Manufacturer Quality Precision 0.5% 1% Waterproof Ntc Thermistor Temperature Sensor

Product Description

Manufacturer Quality Precision 0.5% 1% Waterproof NTC Thermistor Temperature Probe Temperature Sensor for Home Appliance
FEATURES Epoxy-sealed,small volume,quick reaction,high sensitivity Stable operation, high reliability, and high precision Good Consistency, easy for interchange
PURPOSE Precise temperature measurement Temperature compensation for electronic wire Circuit of temperature measurement and control
APLLICATION Electronic thermometer,electrionc calendar,electrionic clock temperature display,electronic present Cooling and heating equipment, heating of constant-temperature electrical appliances Electronic temperature measurement and control circuit of automobile Temperature sensor, temperature meter Medical electronic equipment, electronic washing equipment Mobile phone battery and charging electric appliance Bread furnace and other small appliances
MAIN TECHNICAL SPECIFICATIONS

Specification Name	Scope	Detection Condition
R25(nominal resistance value)	500Ω~1MΩ	Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%)	±1,±2, ±3, ±4	Constant temperature 25ºC±0.05ºC
B25/50 (material coefficient)(thermal-sensitivity index)	3000~5000K	Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC
B25/50 Value permissible variance(%)	±1,±2	Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC
∫(dissipation coefficient)	≥1.5mw/ºC	Static in the air
T(thermal time constant)	≤5S	Static in the air
Ta(Working temperature)	-40ºC~+120ºC
Pn (rated power)	50mw	Within working temperature

---
