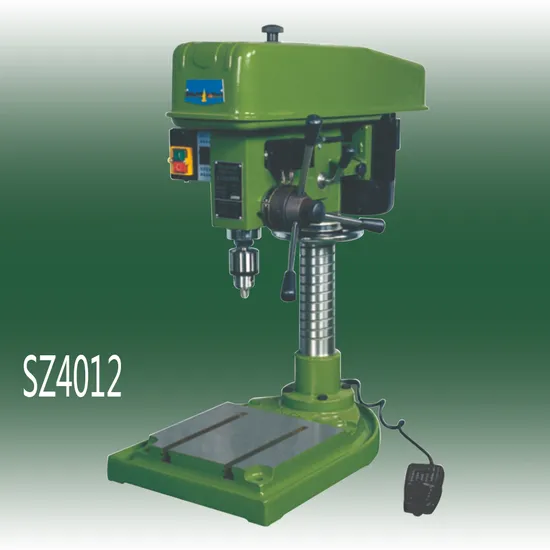

High Speed Vertical Drilling and Tapping Bench Drill Sz4012 Metal Heavy Duty Cast Iron Steel Tapper Machine M10 M8

US$734.00 1 Piece (MOQ)

Basic Info.

Model NO.
SZ4012
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
400W
Max Drilling Capacity
12 mm
Transport Package
Wooden Case
Specification
79x45x78cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300

Product Description

Model ZS4120 SZ4012 SZ4112
Max.tapping capacity(Cast iron/Steel) M16 M10/M8 M10/M8
Max Drilling capacity 20mm 12mm 12mm
Diameter of column 85mm 70mm 70mm
Spindle travel 125mm 100mm 100mm
Distance spindle axis to column surface 240mm 193mm 193mm
Max distance spindle nose to worktable 355mm 326mm
Max.distance spindle nose to base 615mm 326mm 556mm
Spindle taper MT.2 B16 B16
Spindle speeds range 235-2050rpm 480-1400rpm 480-1400rpm
Spindle speeds 5 3 3
Dimension of worktable surface 280x300mm 200x230mm
Dimension of base worktable surface 315x335mm 280x260mm 280x260mm
Overall height 1127mm 870mm 1037mm
Motor 750W 400W 400W
G.W./N.W. 155/140kg 100/75kg 105/95kg
Ship measurement 85x54x102cm 79x45x78cm 79x45x95cm
