Loading & Unloading System Machinery Tool

US$15,500.00-22,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
NA-48BP
Application
Wood
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Spindle
9kw Air Cooling Spindle
Table
PVC Vacuum Table
Controller
Taiwan Syntec Controller
Rack
Helical Racks
Rail
Taiwan Rail
Motor
Stepper Motor
Ball Screw
High Precision
Dust Collector
3kw with Double Bags
Pump
5.5kw / 7.5kw
Transport Package
Plywood Box
Specification
weight: 3000kgs
Trademark
DLM
Origin
China
HS Code
84609090
Production Capacity
600 Sets/ Year

Product Description

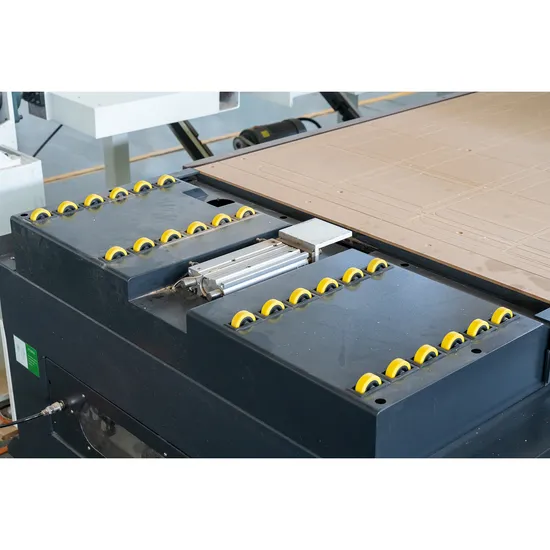

CNC Woodworking Machinery with loading and unloading system Model NA-48BP
model NA-48BP
control system Taiwan LNC / Taiwan Syntec control system
Spindle 9KW air cooling / HQD / CC
drilling head 9V / FAM
ball screw high precision
table double layer PVC table
rail Taiwan linear rail
working area 1220mm*2440mm
travelling area 1320mm*2540mm
rack High precision helical racks
motor 1.5KW/ servo motor
pump 5.5KW air cooling pump
dust collector 3KW / double bags
working voltage 380V/ 50HZ / 3P
package plywood box
