Digital Programmable Pixel LED Controller Ws2811 Pixel

Product Description

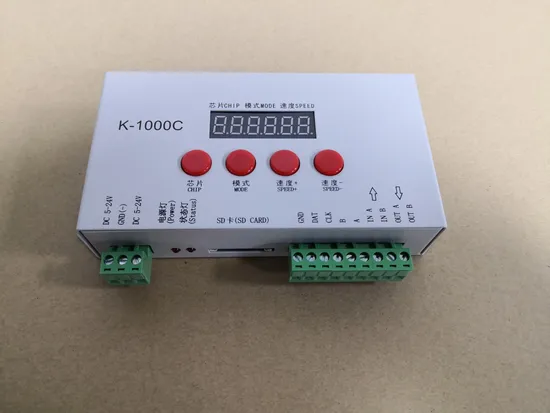

SD card LEDEDIT new software programmable LED strip controller K-1000C
RGB Pixel LED Controller K-1000C DC5-24V Programmable LED Light Control 2048 pixel led rgb controller UCS19/TM1804/WS28/SM167/GS82/SK6812/P9823/SM16716/P9813/LPD6803/LX1003/WS2801/LPD1886/TM1913/TM1914/P9883/P943/DMX512(UCS512,SM512,TM512,GS512)/DMX 500K/UCS5603-T/5603A/5603B/TM1804/INK1003/APA102/UCS8904/SM16714/SM16813/GS8512
Features
1. Can control DMX512 lights, and with DMX address writer function
2. Can support rgbw IC products
3.32 to 65536 degrees Gray control, gamma correction procedure handle
4.Support different point, line light source and all kinds of rules and specific shaped handle
5.The controller has an output port, can support up to 512/2048 pixels (DMX lighting support up to 512 pixels)
6.Play content stored on the SD card, the SD card can save up to 32 effects file, SD card capacity support 256MB-32GB
7.The controller can use single-set, even multiple controller cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M2 pure copper power cable
8.The controller support chip can disable the support IC in software, or do not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient
9. For the DMX lighting IC, the controller comes with write address function, In addition, with the use of our 2016 LedEdit-K V3.26 or later edition can write a key address function setting
10.Support load lamp is 4 channels (RGBW) pixels or split in single-channel pixel point
11.Enhanced 485 TTL and 485 differential (DMX) signal output
12.The controller comes with the test effects as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and leaves
Parameters
1.Input voltage: DC5V-24V
2.Dimensions: 159*89*24mm
3.Weight: 230g
4.Number of programs: 32 MAX
5.MAX number of pixels: 2048 pixels
6.Compatible with single line or double line chips
7.32-65536 Gray level, Support software Gamma correction
8.Support the rules and special-shaped handle
9.Single-port output, can support 2048 pixels
10.Off-line(SD Card) control,play back content stored in the SD card
11.Multiple controllers can be cascaded together and work Synchronous, play back content stored in the SD card
12.ATA-K-1000C store a maximum of 32 programs, copy multiple files to the SD card in order, after formatting the SD card as "FAT" format
13.The program must be named in orders. Just as: 00_1. Led, 01_1. Led, 02_1. Led.
14. Play content stored in the SD card , the SD card can store up to 32 effects File, SD card capacity support 256MB-32GB
15. The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient
16. Compatible with single line or double line chips
Notes:
1.The controller load lamps 512 points pixel, speed can reach up to 30 frames / sec, 1024 point pixel speed can reach up to 25 frames / sec, 2048 point pixel speed is about 15 frames / sec (the above parameter is an example of 1903 agreement IC, different IC have difference)
2. International standard DMX512 (1990 agreement) maximum support 512 pixels. When the load is international standard 170 pixels, the speed can reach up to 30 frames / sec, 340 pixels speed is about 20frames / sec, when 512 pixels speed is about 12 frames / sec.
3. ATA-K-1000C must use the new software LedEdit-K
4. If support RGBW four channels' lights should select ATA-K-1000C-RGBW
6. If support single channel light should choose ATA-K-1000C-W, at this time,one channel means one pixel, the software effect make as white lighting
Memory card
type:SD card
Capacity:128MB-2GB
Store file:*.led
IC Supported (PC Software Select K-1000-RGB)

IC supported	Software code&	Pixel (MAX)	Note
	Controller type
TM1803,TM1804,TM1809,TM1812	K-1000C-TM1803	2048	divided into high and low speed
TM1829	K-1000C-TM1829	2048	divided into high and low speed
UCS1903,UCS1903B ,UCS1909,UCS1912	K-1000C-UCS1903	2048	divided into high and low speed
UCS2903,UCS2909,UCS2912,	K-1000C-UCS2903	2048	divided into high and low speed
UCS3903	K-1000C-UCS1024	2048
UCS6909,UCS6912,UCS7009,UCS5903	K-1000C-UCS6909	2048
TA9909	K-1000C-TA9909	2048	divided into high and low speed
MBI6021	K-1000C-MBI6021	2048
P9813	K-1000C-P9813	2048
WS2811	K-1000C-WS2811	2048	divided into high and low speed
INK1003	K-1000C-INK1003	2048	divided into high and low speed
TLS3100	K-1000C-TLS3100	2048	divided into high and low speed
DMX512	K-1000C-DMX	170/512	DMX512
SM16711	K-1000C-SM16711	2048	divided into high and low speed
SM16716	K-1000C-SM16716	2048
SM16726	K-1000C-SM16726	2048
LPD6803,D705,1101	K-1000C-6803	2048
LPD8806,LPD8809	K-1000C-8806	2048
LPD1882,LPD1889	K-1000C-1882	2048	divided into high and low speed
LPD6812	K-1000C-6812	2048	divided into high and low speed
LPD6813	K-1000C-6813	2048
TM1903,TM1904,TM1909,TM1912	K-1000C-TM1903	2048	divided into high and low speed
WS2801,WS2803	K-1000C-WS2801	2048
D7710,D7720	K-1000C-D7710	2048
QC1109	K-1000C-QC1109	2048
TLS3001,TLS3008	K-1000C-TLS3001	*
APA102	K-1000C-APA102	2048
MY9221	K-1000C-MY9221	2048
BS0815	K-1000C-0815	2048
GW6203	K-1000C-GW6203	2048
BS0825	K-1000C-0825	2048
BS0901	K-1000C-0901	2048
HL32	K-1000C-HL32	2048
HL1809	K-1000C-HL1809	2048
HL2803	K-1000C-HL2803	2048
RGB	K-1000C-RGB	2048	divided into high and low speed

Button Instruction

Buttons	Definition
SET	Save Settings ( to save current settings file and the playback speed )
MODE	Change programs
SPEED+	Speed up	Press speed+ and speed- on the same time the program
SPEED-	Speed down	Will play circularly
DC5V	+5V power input
GND	Power GND input
7.5-24V	+7.5-24V power input
POWER	Power indicator
ERROR	Error indicator
SD CARD	SD card slot
TTL signal(245/spi signal)		RS485 signal
CLK	Clock signal	B	Signal A / DMX+
DAT	Data signal	A	Signal B / DMX-
GND	Signal ground

How to connect
Applications
User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works
Assembly must not damage or destroy conducting paths
Make sure that the product is mounted on a stable, even and tilt-fixed background
The complete installation must be done by an electrical expert who is familiar with the valid directives
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box

---
