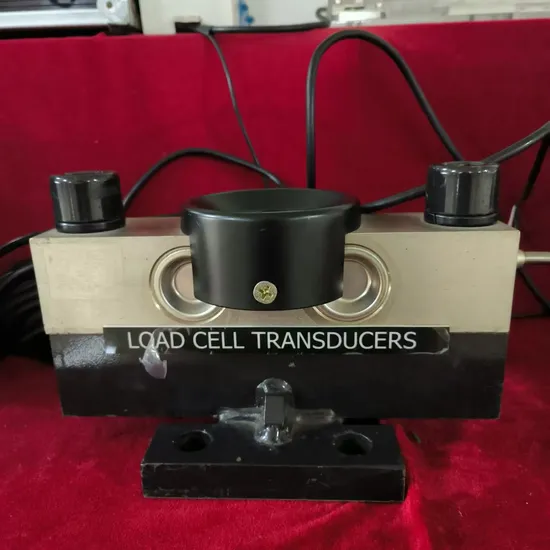

High Performance Durable Weighbridge Scale Usage Load Cell

Product Description

Product Description Good Quality Weighbridge Truck Scale Load Cell
FEATURES:
Capacity 5klb to 100klb
Optional stainless steel, alloy steel available
The main features of the load cell transducer

Rated capacities	2,5,10,15,20,30,40,50,60,80,100t
Sensitivity	1.0±0.005mV/V(5~10t);1.5±0.005mV/V(15~60t)
Total error	±0.1%F.S(5~20t); ±0.2%F.S(30~60t)
Creep(30min)	±0.05%F.S
Zero balance	±1%F.S
TCO	±0.05%F.S/10°C
TC SPAN	±0.05%F.S/10°C
Input resistance	750±10Ω
Output resistance	703±2Ω
Insulation resistance	≥5000MΩ
Operating Temp Range	-30°C~+70°C
Maximum safe overload	150%F.S
Ultimate overload	300%F.S
Excitation, recommended	10~12V DC
Protection class	IP68
Construction	Alloy Steel
Cable	Length: 20m,Diameter: 6mm

Advantage: Integrated style self balancing structure, improve raw material recovery after deformation performance Adopt the most advanced elastic composite material, and improve the fatigue resistance and stability and revolutionary prolong service life The weighing accuracy meet the C3 standards, fully meet user demand for large weighing high degree value Antirust materials susceptible to oxidation corrosion defects The patent waterproof technology, completely suitable for use in high humidity environment High interchangeability, do not need to change the user habit of installation Strong compatibility, can satisfy with the use of different digital agreement, digital product applies to be calibration without weight and other efficient setup program. Personalization and flexible, customizable double circuit, without connection box, derivation model, tailored for the user, safeguard the rights and interests of users
FAQ
1.Can you customized the scale design for us?
Yes, we have professional team with rich experience of all type scales design by CAD software.you only need to tell us scale design or send us the technical drawing you want, so that we can customize according to your request.
2.Can you also offer truck scales weighing scales for us?
Yes, we can offer different models of different capacity and size of truck weighing scales to meet different request of customers.
3..How about your weighing scales quality, we are worry about the quality?
We are more than 30 years manufacturing experience of different kinds of electronic truck scales and truck weighing scales.We strictly manufacture and manage according to IOS9001:2000 System.and can match all the CE standard or more strict standard. Our products are running well in more than 30 countries
4.How we visit your factory and what will be the procedure?
Our company located in Quanzhou, FU JIAN province, our nearest airport is JIN JIANG airport, if you take plane, it will need about 1 hours from Guangzhou city, 1.5hours from shanghai and 2 hour from Beijing.We will pick you up from airport as well as the train station.Welcome you and your team to visit us at any time!
5.Your truck scale price is high, is there any discount?
We always provide high quality weighing scales with reasonable prices.Our truck scales have enough quality standard to make sure the scale can work at different sourrounings situations. Our marketing style is quality equal to price, the price will be acceptable for our clients and durable for our productsAnyhow, when we will negotiate the price with each other during our meeting in factory and try our best to get a good satisfaction.

Why you choose us? ---- IMPORTANT!!
1/ PROFESSIONAL EXPERIENCE
2/ RELIABLE QUALITY GUANRANTEED
3/ REASONABLE PRICE BASED ON ITS QUALITY
4/ STABLE WORKING EASY INSTALL AND MAINTANCE
5/ SPECIAL SERVICE AND IN-TIME SERVICE BEFORE AND AFTER SALES
6/ MATURE TECHNICS UPDATE

---
