| US$0.20 | 100 Pieces (MOQ) |

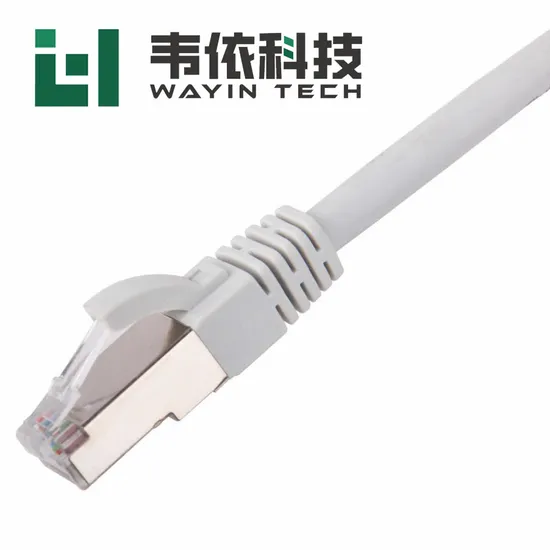

| Product Name | CAT 6A Patch Cord S/FTP | CAT 6A Patch Cord S/FTP |
| Conductor | 26AWG | 27AWG |
| Conductor Dimension | 7/0.16mm | 7/0.145mm |
| Insulation Material | Foamed PE | Foamed PE |
| Insulation Dimension | 1.10±0.05mm | 1.00±0.05mm |
| Jacket Diameter | 7.00±0.30mm | 6.60±0.30mm |
| Rated Temperature | -20~75ºC | -20~75ºC |
| Product Material | PVC | LSZH |
| Pre Aging Tensile strength elongation | ≥13.8Mpa ≥100% | ≥9Mpa ≥100% |
| Afer Aging Tensile strength elongation | ≥85% Mpa of unaged ≥50% of unaged | ≥70% Mpa of unaged ≥50% of unaged |
| Aging Condition | 100x168ºCxhrs | 100x168ºCxhrs |
| Dielectric Strength | 1000V/min |
| Voltage Class (maximum) | 150V |
| Rated Current (maximum) | 1.5A |
| Insulation Resistance (minimum) | 500megohm |
| Conductor DC Resistance@20 Deg.C (maximum) | ≤14.5Ω/100M(26AWG) ≤17.5Ω/100M(27AWG) |
