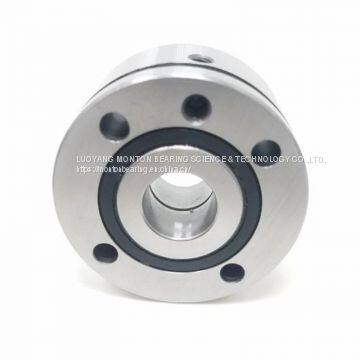

Zklf2068-2rs Thrust Angular Contact Ball Bearing For Machines Tools

Product Details

Product Description

Product Description
ZKLF2068-2RS

Article number

Shaft Ø

Dimensions

Connecting dimensions

Fixing screw

d -0,005

D

B -0,25

D1

B1

J

d2

l

m

n

A

d1

Da

da

ISO 4762 10.9

Number n × t

ZKLF2068.2RS

20

68

28

44

—

53

6,5

19

-

-

-

34,5

43

25

M6

4x90°

Article number	Axial load rating		Max. Speed	Moment of friction	Axial rigidity	Tilting rigidity	Recommended locknut	Tightening torque	Weight
	Cdyn [kN]	C0 [kN]	Grease [1/min]	MRL [Nm]	cal [N/µm]	ckL [Nm/mrad]	Article- number	MA [Nm]	kg
ZKLF2068.2RS	26	47	3000	0,15	650	140	HIR20/HIA20	18	0,61

The ball cages are made from plastic, permissible operating temperature 120 °C (continuous operation).
On request the bearings can also be supplied with less stringent tolerances (type ZKLF...PE)
1) Contact angle α = 60°.
2) Hole diameter tolerance as of d = 60 mm d-0.008
3) Outer diameter tolerance as of d = 60 mm D-0.015
4) Bearing friction torque with gap seal (.2Z). With seal disc (.2RS) approx. 2 × MRL .
5) Refer to catalogue for table of dimensions. Lock nuts are not supplied; order separately!
6) Minimum diameter required of installation surface. If these diameters are not reached, the diameters D1 and d1 should be noted.
The reference bearings codes:

Designation	Mass				Dimensions					Dimensions			t	Setscrew		Basic Load Ratings		Limiting
		d	D	B	d1	D1	r	r1	J	d2	b	l				Cr	Cor	Speed
				-0.25	min.	min.	min.	min.				min.		spec	amount	Dynamic	Static	grease
	Kg				mm					mm			Q'ty×t			kN		Rpm
ZKLF 1255.2RS	0.37	12	55	25	25	33.5	0.3	0.6	42	6.5	3	17	3×120°	M6	3	17	24.7	3800
ZKLF 1255.2Z	0.37	12	55	25	25	33.5	0.3	0.6	42	6.5	3	17	3×120°	M6	3	17	24.7	7600
ZKLF 1560.2RS	0.43	15	60	25	28	36	0.3	0.6	46	6.5	3	17	3×120°	M6	3	17.9	28	3500
ZKLF 1560.2Z	0.43	15	60	25	23	12	0.3	0.6	46	6.5	3	17	3×120°	M6	3	17.9	28	7000
ZKLF 1762.2RS	0.45	17	62	25	23	12	0.3	0.6	48	6.5	3	17	3×120°	M6	3	18.8	31	3300
ZKLF 1762.2Z	0.45	17	62	25	25	14	0.3	0.6	48	6.5	3	17	3×120°	M6	3	18.8	31	6600
ZKLF 2068.2RS	0.61	20	68	28	25	14	0.3	0.6	53	6.5	3	19	4×90°	M6	4	26	47	3000
ZKLF 2068.2Z	0.61	20	68	28	30	16	0.3	0.6	53	6.5	3	19	4×90°	M6	4	26	47	5400
ZKLF 2575.2RS	0.72	25	75	28	30	16	0.3	0.6	58	6.5	3	19	4×90°	M6	4	27.5	55	2600
ZKLF 2575.2Z	0.72	25	75	28	32	20	0.3	0.6	58	6.5	3	19	4×90°	M6	4	27.5	55	4700
ZKLF 3080.2RS	0.78	30	80	28	32	20	0.3	0.6	63	6.5	3	19	6×60°	M6	6	29	64	2200
ZKLF 3080.2Z	0.78	30	80	28	34	23	0.3	0.6	63	6.5	3	19	6×60°	M6	6	29	64	4300
ZKLF 3590.2RS	1.13	35	90	34	34	23	0.3	0.6	75	8.5	3	25	4×90°	M8	4	41	89	2000
ZKLF 3590.2Z	1.13	35	90	34	40	25	0.3	0.6	75	8.5	3	25	4×90°	M8	4	41	89	3800
ZKLF 40100.2RS	1.46	40	100	34	40	25	0.3	0.6	80	8.5	3	25	4×90°	M8	4	43	101	1800
ZKLF 40100.2Z	1.46	40	100	34	45	32	0.3	0.6	80	8.5	3	25	4×90°	M8	4	43	101	3300
ZKLF 50115.2RS	1.86	50	115	34	45	32	0.3	0.6	94	8.5	3	25	6×60°	M8	6	46.5	126	1500
ZKLF 50115.2Z	1.86	50	115	34	50	40	0.3	0.6	94	8.5	3	25	6×60°	M8	6	46.5	126	3000
ZKLF 60145.2Z	4.3	60	145	45	50	40	0.3	0.6	120	8.5	3	35	6×60°	M8	8	84	214	3000
ZKLF 70155.2Z	4.9	70	155	45	59	45	0.3	0.6	130	8.5	3	35	8×45°	M8	8	88	241	2800
ZKLF 80165.2Z	5.3	80	165	45	59	45	0.3	0.6	140	8.5	3	35	8×45°	M8	8	91	265	2700
ZKLF 90190.2Z	8.7	90	190	55	64	50	0.3	0.6	165	10.5	3	45	8×45°	M10	8	135	395	2300
ZKLF 100200.2Z	9.3	100	200	55	64	50	0.3	0.6	175	10.5	3	45	8×45°	M10	8	140	435	2150

---
