Product Description
Product Description
Product Description

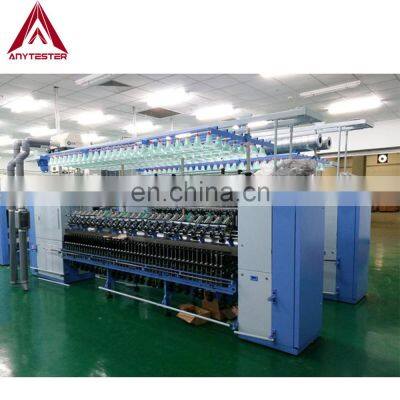

AT286 Small Scale Ring Spinning Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine, ring spinning machine and winding machine) which is widely used in universities, researching center and small scale production, it can be used for both cotton, wool and blend fiber. AT286 Mini Scale Ring Spinning Machine is used to spin yarn from roving by ring spinning method.
Specification
Model
| AT286
|
|
|
|
|
Number of spindles
| 75, 96, 108, 156, 372, 396
|
|
|
|
|
Spindle gauge
| 75mm
|
|
|
|
|
Ring
| Φ51*11.2
|
|
|
|
|
Lift
| 230mm
|
|
|
|
|
Count
| 50~12.5tex (20~80Nm)
|
|
|
|
|
Draft ratio
| 12~40
|
|
|
|
|
Twist range
| 50~250twists/meter
|
|
|
|
|
Draft type
| Three-roller, double aprons, pendulum weight arms
|
|
|
|
|
Bottom roller dia
| 35mm
| 105
| 105
| 105
| 110
|
Bottom roller gauge
| Front - behind
| 263
| 223, 230
| 223
| 230
|
Spindle speed
| 4500 ~ 13000rpm
|
|
|
|
|
Twist direction
| Z or S, settable
|
|
|
|
|
Power supply
| 3 phase AC380V 50Hz
|
|
|
|
|
Details & Features
1. Mini machine, save researching cost and easy to operate and maintain;2. Touch screen & PLC control;3. Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;4. Frequency converter of high efficiency to control roll speed;5. Pressurizing system :spring pressure cradle;6. Three-up-three-down drafting structure;7. Optional special program for spinning slub yarn on this ring spinning machine;
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging
|
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Term
|
T/T
| EXW
|
30% T/T in advance, paid the balance before shipment
|
|
| FOB
|
|
|
| CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
| CIF
|
|
| L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
|
| West Union
|
Amount lower than 5000usd
|
|
| West Union
|
|
|
Delivery Time
| 7~10days after receiving payment for one container
|
|
|
