Suntech PC Wire Stranding Machine Prestressed Wire Strand Machine

Product Description

PC stranding machine/ PC strander

No.	Structure	Strand diameter mm	Strength MPa	Marks
1	1+6	Φ9.53	≥1860
2	1+6	12.7	≥1860
3	1+6	15.2	≥1860
4	1+6	17.8	≥1860

Product Description

I. Features of Machine:
1) Skip type stranding machine 1+6×1250
Skip type stranding machine, each group have 7 pcs Φ1250 bobbins, unit set have motor drive.
2) Die and Forming:
Synthesized formwork have die which suit for different size inside, can adjust lengthwise position by manual regulate the screw.
Forming device's forming wheel can be manual fine adjustable. Machine use cylinder open, easy operation, running reliable, avoid wire strand scattered. Product Parameters

No.	Name	Quantity	Note
1	Stranding machine	1
2	Synthesized Die	1
3	Forming	1
4	First tension device	1
5	Medium frequency furnace	1
6	Water cooling trough	1
7	Second tension device	1
8	Constant tension device	2
9	Pay off and take up	2
10	Wire arranging	1
11	Layer winding	1
12	Control system	1

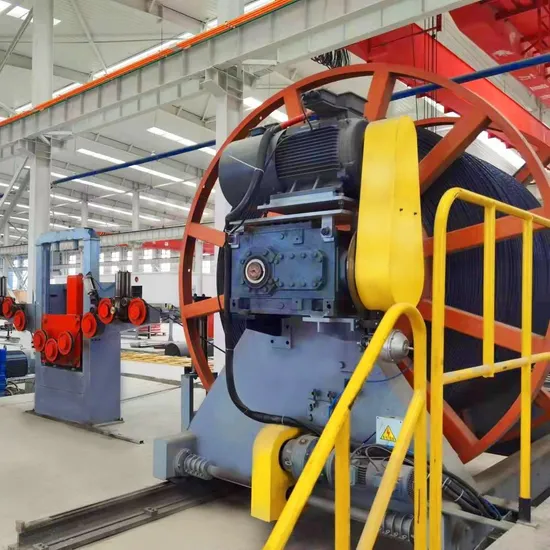

Detailed Photos
Working system:
Continuous working system, without stop in the festival and holidays, machine is running at 3shifts one day, annual examine and repair system, working time plans as follows:
Annual working schedule

Working system	Total hours per year (h)	Plan stop time	Working hours (h)	Non-planed stop time(h)			Annual efficient working time (h)
		Repair (h)		Change bobbins	Change Size	Maintain failure
Three shifts	8760	576	8184	1364	180	341	6299

Note: 1:Annual day is 365 days.
2:Plan repair days calculate as 2days/month.
IV. Our Workshop:
Company Profile
