EBZ135 Roadheader For Mining and Tunneling

Product Details

Product Description

Product Description

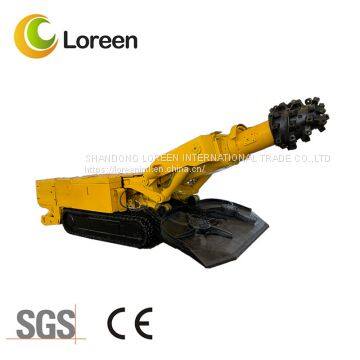

EBZ135 Roadheader For Mining and Tunneling
Heavy Duty Roadheader Application:
EBZ series Roadheader is a kind of comprehensive tunnelling equipment intergrated with continuous cutting, conveying and moving. it suits for tunneling with different shape crosssection in coal lane, half coal lane and soft rock.
The underground working roadheader adpot three dimensional design and the key spare parts are famous international brand products to ensure reliable performance. The center of gravity preposition design benefit for stable operation after connecting the belt stage loader. EBZ series Roadheader suits for mechanized production in coal mine and tunnel works.
EBZ135 roadheader is designed as compact structure, low body, low center of gravity. easy operation, good working performance.
roadheader factory:LOREEN
Roadheader Tunneling Machine Technical Parameter:

Main Technical Specification	EBZ135
Cutting Motor Power	135Kw
Oil Pump Motor Power	75Kw
Cutting Hardness	≤70MPa
Location Cutting Range	Height: 4 m
	Width: 5.1 m
Machine Weight	38.8 T
Dimension (Length * Width * Height )	8.92*2.8*1.53 m
Rotary speed of cutter head	44 r/min
Rotary Speed of star wheel	33 r/min
Loading capacity	3.4 m³/min
Speed of 1st conveyor	40 m/min
Grade Ability	±18º
Gantry Height	400 mm
Hydraulic System Pressure	≤18 MPa
Hydraulic Oil Tank Capacity	500 L
Dinting Depth	0.2m
Supply Voltage	AC1140/660V
