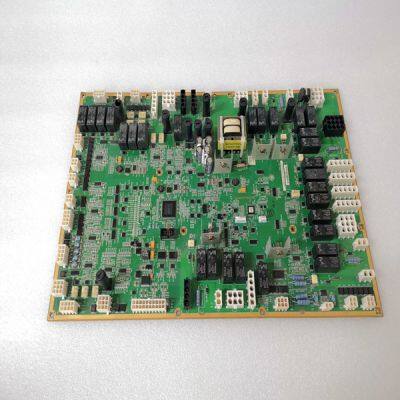

IS200WETBH1ABA

Product Details

Product Description

Product Description
Brand: GE
Type:IS200WETBH1ABA
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
The voltage of the external power source needs to be 30 VDC or less and can be the same source used to provide power to the inputs. A clamp diode must be added across the coil to clamp the voltage during turn-off. 6.7.3 High Speed Input High Speed Input J4-10, 11 (Step or PWM) The S200 has one high speed input for use with PWM input commands or with Step Input in Position Mode. J4-10 HSINP1+ J4-11 HSINP1- 221 Ω 2.21 k The high speed input works directly with 5 V input, 3.0 to 6.0 V range, without the use of a current limiting resistor. To operate the input with voltages higher than 5 V, an external current limiting resistor is required in series with the input. The input current should be in the range of 9 to 24 mA for proper operation. The following table lists the recommended current limiting resistors for supply voltages greater than 5 V. Supply Voltage Current Limiting Resistor 5 V None 12 V 360 , ¼ watt, resistor 24 V 1000 , ½ watt, resistor In Step-Dir Position Mode the transition edge from LED current to no LED current yields a step count. The transition edge from no LED current to LED current yields no action.
NOTE Maximum step frequency is 1.5 MHz Minimum pulse width is 250 ns NOTE For single ended operation, it is recommended that both wires (J4-10 and J4-11) run in the cable be terminated at the control source (differential noise). High Speed Input Differential Drive A differential drive is recommended for the Step Input. To provide maximum noise immunity, drive the high speed input differentially from 5 V logic through twisted pair wiring. The differential driver needs to deliver a minimum of 3.0 V to the input terminals on J4. A CMOS driver is recommended.2/2008 Wiring the Drive S200 Base/SynqNet Reference Manual M-SM-200-01 C 49 Sinking Load For single ended operation, both terminals of the high speed input are available on J4, allowing the input to be connected to either sinking or sourcing logic. The following diagram shows the connections to drive the high-speed input from sinking logic. External 4 - 30 VDC Power Supply Sinking Logic Output from Field Device External Current Limiting Resistor for supply > 5.0 V J4-10 HSINP1+ J4-11 DC HSINP1- + - Sourcing Load The following shows the connections to drive the high-speed input from sourcing logic. The power supply can be the same power source used to provide power for the general purpose inputs.The SFD BAT+ terminal is an optional feature and is not required for proper operation of the drive. It is only required if battery backup of the multi-turn information is required from the SFD. If the feedback device is not an SFD, then the battery does nothing. J4-13 I/O RTN The I/O RTN is the ground reference for the SFD BAT+ input.

---
