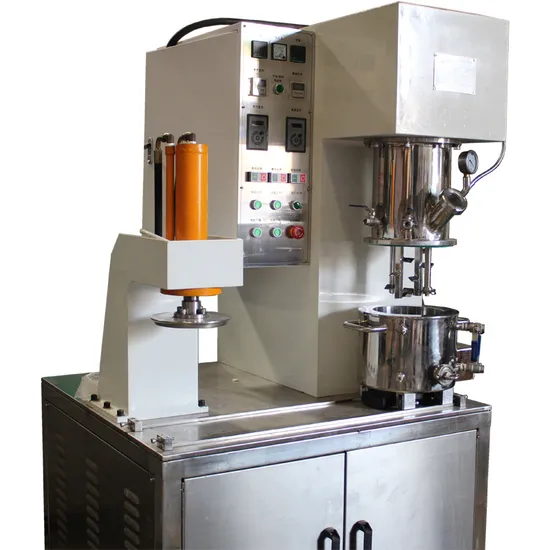

Jct Planetary Mixer for Glue Adhesive Cosmetic and Chemical Productionion

Product Description

Detailed Photos Product Description 1)Base material dispersing mixer
2)High viscosity pump
3)Base storage tank,
4)heating system(according to actual requirements)
5)Vacuum system,
6)Three roller grinding machine(according to actual requirements)
7)multifunctional-dispersing machine
8)Hydraulic discharging machine,
9)Cooling system,
10)Sealant filling machine( plastic bottle filling machine,film filling machine)
11)Raw material storage tank
12)Oven,
13)Batching system,

model	feeding voluma	planetary motor	Revolution speed	Rotation speed	Vacuum	Remarks
	L	KW	rpm	rpm	mpa	for reference only
XJB-2L	1.2	0.75	0-28	0-100	-0.096
XJB-5L	3	1.5	0-28	0-100	-0.096
XJB-20L	12	4	0-28	0-100	-0.096
XJB-50L	30	5.5	0-28	0-100	-0.096
XJB-100L	60	11	0-28	0-100	-0.096
XJB-200L	120	15	0-22	0-80	-0.096
XJB-300L	180	18.5	0-22	0-80	-0.096
XJB-500L	300	30	0-22	0-80	-0.096
XJB-1000	600	45	0-22	0-80	-0.096
XJB-1500	900	55	0-22	0-80	-0.096
XJB-2000	1200	75	0-22	0-80	-0.096

Production process 1)Pulp part
The solvent through the liquid metering device is added to the liquid material groove , by Vacuum suction to emulsifying kettle , start low speed anchor mixer , the powder material is sucked into the vacuum emulsifying tank for continuous stirred 10 minutes , then turn on the two sets of vertical high shear emulsifying 10 minutes , finally use horizontal emulsion machine , continuous cycle 30 minutes , finished slurry . A high shear inside the tank and an emulsion pump outside the tank are also used ,Ensure further refinement of materials , and greatly shorten the operation time
2)Paint part
By vacuum , resin , film-forming agent from the liquid tank into the low-speed stirred tank the bag filter is sucked into the low-speed mixer , the emulsion or solvent ,additives , slurry mixing , then adding additives ( thickener ) , blending paint .
3 ) Filter packing
After a good tune paint , vacuum defoaming after 5 minutes , stirring was stopped by a bag coating to semi-automatic filling machine for packaging , When the coating material using a two bag filters , can be switched with each use , does not affect the filling speed
