Heavy Duty Model Hot Rolling Mill for Wire Rod and Rebar Production Line for Steel Plant

Product Description

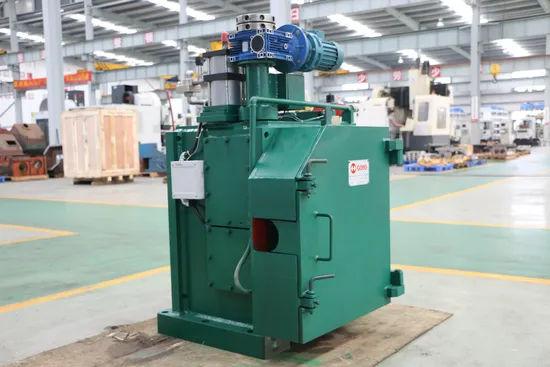

High Speed Wire Rod Mill No Twist Finishing Mill
This top crossing 45 ° high-speed wire rod finishing mill is arranged in the high-speed wire rod production workshop. Through the continuous micro tension rolling of the 10 stands of finishing mills, the rolled pieces of Ø 17 ~ Ø 37mm conveyed by the upstream mill are rolled into finished wires of Ø5.5 ~ Ø22mm. The maximum operating speed is 120m/s,and the guaranteed outlet speed of the unit is 105m/s.

Product specification	Max rolling force	roller box specifications	layout mode	Maximum operating speed	Maximum speed guarantee
Φ5.5-Φ22	330kn or 160kn	Ф230 or Ф160	Top cross 45°,10 frame centralized transmission	120m/s	105m/s

MODULE MILL advantages:
1.Speed up, increase production:When rolling Φ6, normal roll speed is 75m/s, one hour production is 57t, used module mill, speed increase to105m/s, one hour production is 78.76t.
2.Reduced alloy composition:Production of fine grain rebar, billet cost decreased 80/t
3.Shorter time to change the roll:Shorter time to change the roll, annual production increased 2,880,000t.
4.Reduce equipment storage:Only one bevel gear box is needed as a reserve, can reduce 4, at $2 million per unit, the reserve can be reduced by $8 million
5.Motor:Main motor power in DC motor reasonable power range, can choose DC transmission scheme, saving investment of RMB 3 million.
6.Energy Saving:According to the field test, the empty power consumption of each mill is as high as 100kw. According to the production of four empty mills, the annual waste of electricity is as high as 2.24 million KWH (7000*8*400=2240000), and the electricity cost is 1.344 million yuan (224000*0.6=1244000).
7.Less Spare Parts:The inventory of roller rings, guide guards and other technological parts shall be reduced by more than 4 million yuan.
Product Parameters
Technical Parameters:

Type	2 frame Ф200+2 frame Ф150
Rolling Specification	Ф5.0~Ф25mm
Rolling Speed	Maximum 110m/s
Dimensional Accuracy	±0.1mm
Rolling Temperature	≥750ºC

Our Services
Company Profile
FAQ
Are you a trading company or a manufacturer?
We are a professional rolling mill manufacturer with 29years of experience supported by the chinese government. We offer tailor made high speed wire rod and bar hot rolling mill product solution and turnkey project.
How many successful projects have you done?
Since 1996, GOYO's products and services have been exported to more than 20 countries and regions, such as China, Malaysia, Russia, Thailand, South Africa, India, Ethiopia, Philippines, Vietnam, Indonesia and so on.
How do you guarantee quality?
Quality is our lifeline.
GOYO has a complete quality assurance system and an excellent quality management team. We insist on pre-production samples before mass production and final inspection and trial operation before shipment;
At the same time, we have obtained the international ISO, BV and SGS quality system certification.
How to get a quote?
Please tell us the following details by email or other means, so that we can recommend suitable plans and layouts to you:
Turnkey project or part of equipment or parts
Raw material (bill or scrap) and its size
Finished product and its dimensions
Whether a furnace is required and what fuel is used
Your planned annual output and working hours
Available factory area
Please let us know if you have any additions or questions.

---
