High-definition band-pass infrared detector makes gas detection clearer
Customized band-pass filter detector (C: 7.0-8.5μm, F: center wavelength 10.55μm), to eliminate stray light interference and make gas detection is clearer.
Approximate thermal sensitivity of cooled detectors: as low as 23mK, to capture even smaller amounts of gas.
Combined with a 23° custom lens, the spatial resolution (IFOV) is as low as 0.63mrad, providing a wider working distance or finer gas details.
Carefully selected infrared bands can observe dozens of gases including methane, sulfur hexafluoride, ethylene, ammonia, Freon, nitric oxide, sulfur dioxide, etc.
3.5-inch touch screen + complete analysis function support: from the inspection site to the report output, the workflow is fully assisted to help you complete the task easily.

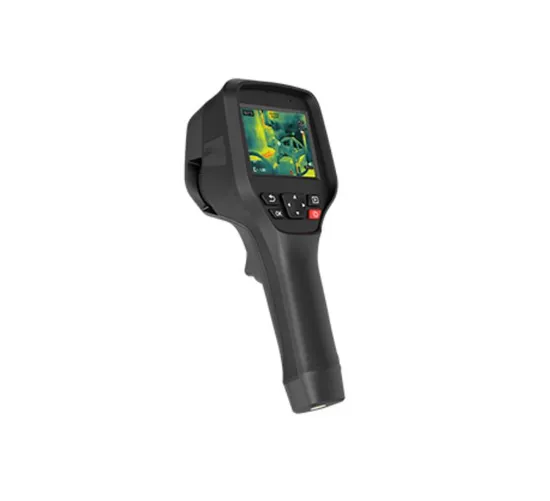

Gas leakage in the industrial production process has always been a time-consuming and labor-intensive inspection problem because it is invisible to the naked eye. InfiRay Tianji G600 Uncooled Infrared Camera for Gas Detection can be used for the leakage of natural gas (CH4), refrigerant (freon), ammonia (NH3), sulfur hexafluoride (SF6) and other gases The non-contact method of thermal imaging helps you quickly locate the location of a small amount of gas leakage.
Specifications of Tianji G600 Uncooled Infrared Camera for Gas Detection
| Model | G600C | G600F |
| Version | Overseas |
| Thermal Imaging Parameters |
| Detector Type | Uncooled VOx |
| Detector Resolution | 640×512 |
| Infrared Spectral Band | 7.0-8.5μm | 10.55μm central wavelength |
| Gases Detectable | Methane, nitrous oxide, sulfur dioxide, phenol, ethyl acrylate,2-Ethylhexyl acrylate, Freon (R13, R13B1, R123, R125, R134A, R417A, R422A, R508A, etc.) | Sulfur hexafluoride, ammonia, ethylene, ethylene ether, vinyl chloride, trichloroethylene,methyl vinyl ketone, propylene, acrolein, acrylonitrile, ethyl cyanoacrylate, allyl fluoride, allyl chloride, allyl bromide, furan, etc. |
| Pixel Size | 2μm |
| Thermal Sensitivity | 23mK |
| IFOV ( Spatial Resolution) | 0.63mrad |
| Detector Frame Rate | 30Hz |
| Focal Length | 19mm |
| FOV | 23°×18° |
| Focusing Mode | Manual focusing |
| Measurement Range | -20 ºC~ +120 ºC |
| Measurement Accuracy | ±2% or ±2ºC |
| Resolution of Temperature Measurement | 0.1°C |
| CameraFunctions |
| Temperature Measuring Mode | Center point/hot and cold spot tracking and temperature display |
| Customized Measurement on Points, Lines, and Areas | Movable points/lines/areas; up to 10 points, areas, and lines |
| Temperature Measuring Unit | Celsius, Fahrenheit, Kelvin |
| Emissivity Settings | Adjustable between 0.01 and 1.00 with a step size of 0.01 |
| Ambient Temperature Settings | -10ºC to +50ºC with a step size of 1ºC |
| Distance Settings | 1-20m with a step size of 1m |
| Image Mode | Infrared, dual-spectrum fusion, visible light, PIP |
| Palettes | 10 |
| Temperature Alarm | Available |
| Alarm Type | Image alarm |
| Temperature Scale | Manual/Auto temperature range |
| Laser Pointer | Available |
| Visible Light Camera | 5 megapixels |
| Video/Photo Storage | XX-IR.jpg (Infrared image with temperature data) and XX-DC.jpg (visible-light image); videos without data |
| Voice Annotation | Available |
| Language | English + other languages (Polish, Russian, Korean, Hungarian, Portuguese (Brazil), German, French, Spanish, Italian, Turkish, Traditional Chinese, Japanese), 13 languages in total |
| |
| Display Size | 3.5-inch touch screen (480 × 640) |
| Image Naming | Auto/manual naming, naming by scanning QR code |
| Memory Card | Standard 32 GB MicroSD card |
| Battery | Rechargeable and detachable lithium-ion battery |
| Power Interface | USB TypeC |
| Connecting Methods | USB, SD card, WiFi (AP mode or networking mode) |
| Charging Time | About 3 hours |
| Operating Time | About 3 hours |
| Power Management | Automatic shutdown: 5 minutes, 10 minutes, 20 minutes, never |
| Others |
| Analysis Software | PC&APP |
| Tripod | Available |
| Operating Temperature | -10 ~ +50°C |
| Storage Temperature | -20 ~ +60°C |
| Relative Humidity | 10%~95%, non-condensing |
| Drop Protection | 2m |
| IP Grade | IP54(IEC 60529) |
| Shock and Vibration | Impact 25g (IEC 60068-2-27);vibration 2.5g (IEC60068-2-6) |
| Dimensions (H×W×D) | 256.4 ×105.1 × 105.3mm |
| Weight | About 670g |
| Authentication | CE/FCC/UKCA/ROHS |
| Accessories | 5V 2A power adapter, USB cable, SD card, battery×2, |
| QSG, desktop charger, calibration certificate, package list |
