High-Performance Silicon Carbide Graphite Melting Crucibles for Non-Ferrous Metal Casting

Product Description

Product Description

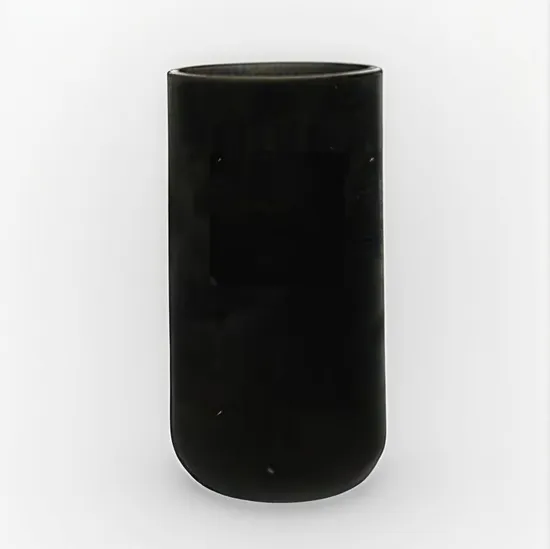

QINGDAO ZHONGYE HIGH TEMPERATURE MATERIALS CO.,LTD. silicon carbide graphite crucible is made by adding silicon carbide particles of varying content to the raw material of the graphite crucible. For example, the content is 50%, 30%, 24%, and other different content. Of course, it can also be based on the different requirements of customers , we accept different customer's custom requirement.
Silicon carbide graphite crucible is mainly used in metallurgy, casting, machinery, chemical industry and other industrial sectors, is widely used in alloy tool steel smelting and non-ferrous metal and its alloy melting, and has better technical and economic effects.
> Advanced technology: Crucibles are manufactured by the world's most advanced cold isostatic molding method , with isotropic properties, high density,high strength , dense uniform and defect-free.
> Long life: compared with ordinary clay graphite crucible, the life can be extended by 3-5 times.
> Resistance to chemical attack: Advanced materials and glaze recipes, effectively resistance to chemical erosion
> High thermal conductivity: Using natural graphite materials and isostatic pressing , thin crucible wall, fast heat conduction
> Resistance to high temperature: Crucible temperature range 400-1400°C
> Energy-saving: Crucible made of high thermal conductivity material can bring a large number of energy saving for users in the production process.
> Less pollution: Because of the choice of high purity inorganic material, little or no harmful impurities into products in the metal melting process.
> Good oxidation resistance: The appearance of a crucible has multi-special glaze layers, coupled with the molding materials compact, greatly improving the corrosion resistance of the product, and extending the life of the crucible.
> Stable and reliable quality: Part of the main raw materials of foreign well-known brands used, glazes mainly using imported raw materials. The quality is stable and reliable.
> Crucible size details as follows,

No.	Style	OD(mm)	H(mm)	ID(mm)	BD(mm)
1	180	400	400	330	230
2	200	420	500	350	230
3	203	420	500	350	230
4	300	450	500	360	230
5	310	430	570	360	230
6	350	470	650	390	320
7	351	430	670	360	230
8	353	600	450	530	330
9	360	530	530	460	300
10	370	530	570	460	300
11	453	520	660	450	310
12	460	565	600	500	310
13	463	570	620	500	310
14	501	520	700	460	310
15	511	550	660	460	320
16	700	600	500	550	295
17	760	615	620	550	295
18	765	615	640	540	330
19	790	640	650	550	330
20	801	610	675	525	330
21	802	610	700	525	330
22	803	610	800	535	330
23	810	620	830	540	330
24	820	700	520	597	280
25	910	710	600	610	300
26	980	715	660	610	300
27	1000	715	700	610	300
28	1050	715	720	620	300
29	1200	715	740	620	300
30	1300	715	800	640	440
31	1500	740	900	640	360
32	1510	740	900	640	360
33	1550	775	750	680	330
34	1650	775	810	685	440
35	1800	780	900	690	440
36	1950	830	750	735	440
37	2001	870	680	765	440
38	2095	830	900	745	440
39	2096	880	750	780	440
40	2250	880	880	780	440
41	2300	880	1000	790	440
42	2500	880	1140	790	440
43	2700	900	1150	800	440
44	4000	1035	1050	925	500
45	5000	1040	1320	930	500
46	5000H1200	1040	1200	930	500
47	5000H830	1030	830	920	500
48	A80	330	410	265	230
49	A100	350	440	282	240
50	A350	475	650	395	330
51	A400	530	760	446	330
52	H850	230	850	160	187
53	H950	270	965	200	240
54	IND205	330	505	280	320
55	IND1200	630	900	530	630
56	IND1250	650	1100	565	650
57	IND1250H650	650	650	563	650
58	IND1400	710	720	622	710
59	IND980H1000	615	1000	480	615
60	U700	785	520	505	420
61	U950	837	540	547	460
62	U1000	980	570	560	480
63	U2690	1065	785	835	728
64	U4750	1080	1250	850	740
65	U6000	1355	1040	1005	880
66	Z1800	780	900	680	440
67	Z2300	880	1000	780	330

Product Category
Company Profile
QINGDAO ZHONGYE HIGH TEMPERATURE MATERIALS CO.,LTD. is a wholly-owned subsidiary of QINGDAO DONGYE REFRACTORY CO.,LTD. Established in 2012, covering an area of 36, 000 square meters. The company has the production line of crucible for metal smelting and the production line of three major parts for continuous casting.
We have advanced production equipment, excellent technology and perfect quality assurance system. All kinds
of crucibles and refractories for continuous casting produced by our factory, such as crucible , integral plug bar, immersion spout, quick-change spout and long spout, have been approved by major steel mills at home, and exported Pakistan, Vietnam, Malaysia, India and Russia countries.
Certifications
Packaging & Shipping
Exhibition & Customers
FAQ
Q: Please tell you are factory or trading company?
A: We are factory and have obtained the right to import and export in 2018.
Q: Could we visit your factory?
A: Sure, when you are ready , please tell me your business trip plan and we will arrange that carefully and meet you in person.
Q: What information should I let you know if I want to get a quotation?
A: Please provide related details , such as materials , size ,technical data , etc, the definite quotation can be sent in time. In order to save your valuable time, we will recommend the most suitable products with details for confirmation.
Q: How do you guarantee the quality of the products?
A: Each step of production and finished products will be carried out inspection by QC department before storing in the warehouse. Defective goods are not allowed in the finished goods warehouse. And the warehouse storing condition would be confirmed every day.
Q: Can you guarantee the timely delivery?
A: Yes, when you are placing order, we will confirm with related department, such as procurement , material , production, get the answer, and will reply the definite delivery time, and we will confirm with forwarders before shipment a week about shipment date.
Q: What is your lead time?
A : It usually need about 20 days after receiving the deposit , and it depends on order details , such as if it is the customed product, order quantity or order seasons. However, we will reply you in time according to your order. Quick response will be done in time.
Q : What is your payments terms?
A : We can accept 30% deposit, 70% balance to be paid before loading container or by LC, or other payment terms.
Q: What is the order process?
A: you can order 1 pcs as sample with wholesale price , and check our product design , durability , quality or other factors , all of them if they are workable. When you are satisfied with our product, please placing our product.

---
