Anti-Slip Sheet Applicator Case Palletizing Machine Carton Palletizer

Product Details

Product Description

Product Description

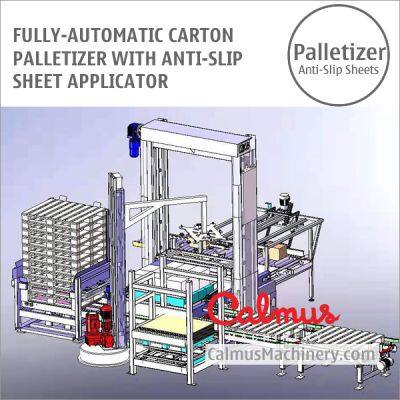

Fully-automatic Case Palletizing Machine Carton Box Palletizer w/Anti-Slip Sheet Applicator
This is a low-level palletizer and used to stack cartons or other packs in order on a pallet with an anti-slip sheet under each layer. It works automatically and packs can be stacked on a pallet by multiple layers. The palletizer employs a touch screen PLC controller and is easy to operate.
Composition:
1. Pack sorting feeder
Sort packs according to a set pattern and then convey them.
2. Pack palletizer
Catch sorted packs and then rise, move and put them on a pallet.
3. Pallet storage and feeder
5-8 empty pallets can be stacked in the storage section. Pallets are fed to the palletizer according to the PLC setting.
4. Loaded pallet deliver
When a pallet is loaded fully, it will be delivered to a designated location.
Materials:
Frame: SS41 steel
Axes: S45C steel
Controller enclosure: SS41 steel
Guide plate: SS41 steel
Specifications:
Power supply: 3 phases, customized voltage, 6KW
Air consumption: 500NL/MIN
Air source pressure: 5-6 kgf/cm2
Weight: 4,000 kg

---
